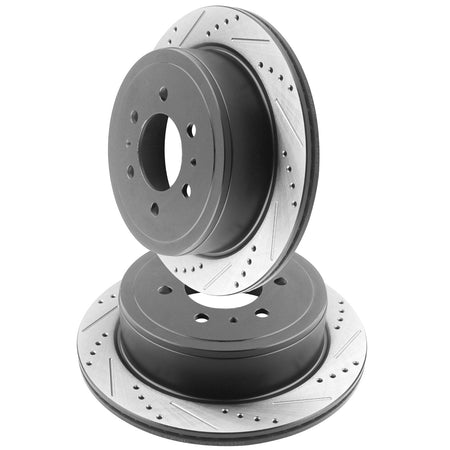

Front & Rear Drilled & Slotted Brake Rotors for Ford F-150

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Replacement for 2010 - 2011 Ford F-150 (6 Lug Models ONLY)

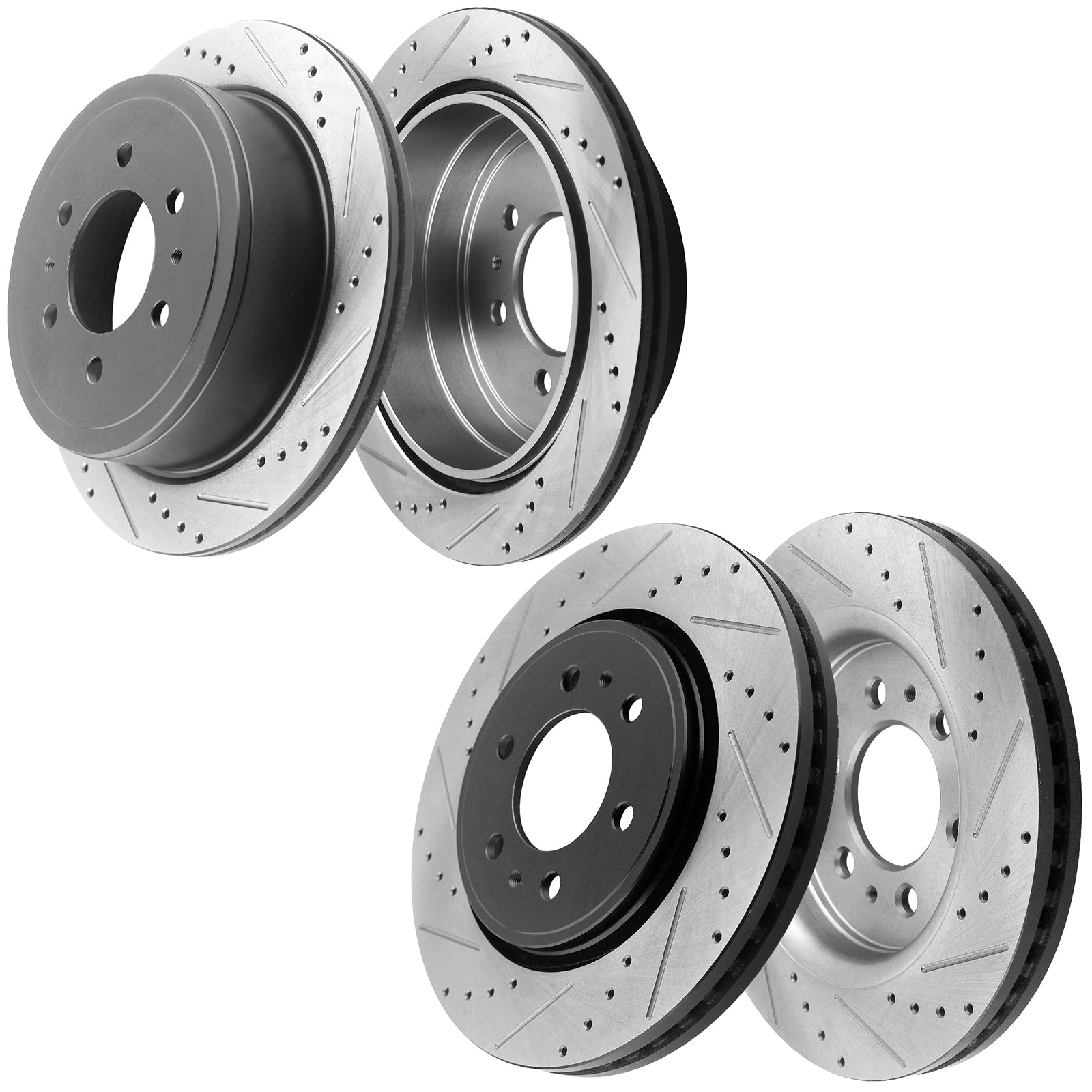

Kit Includes:

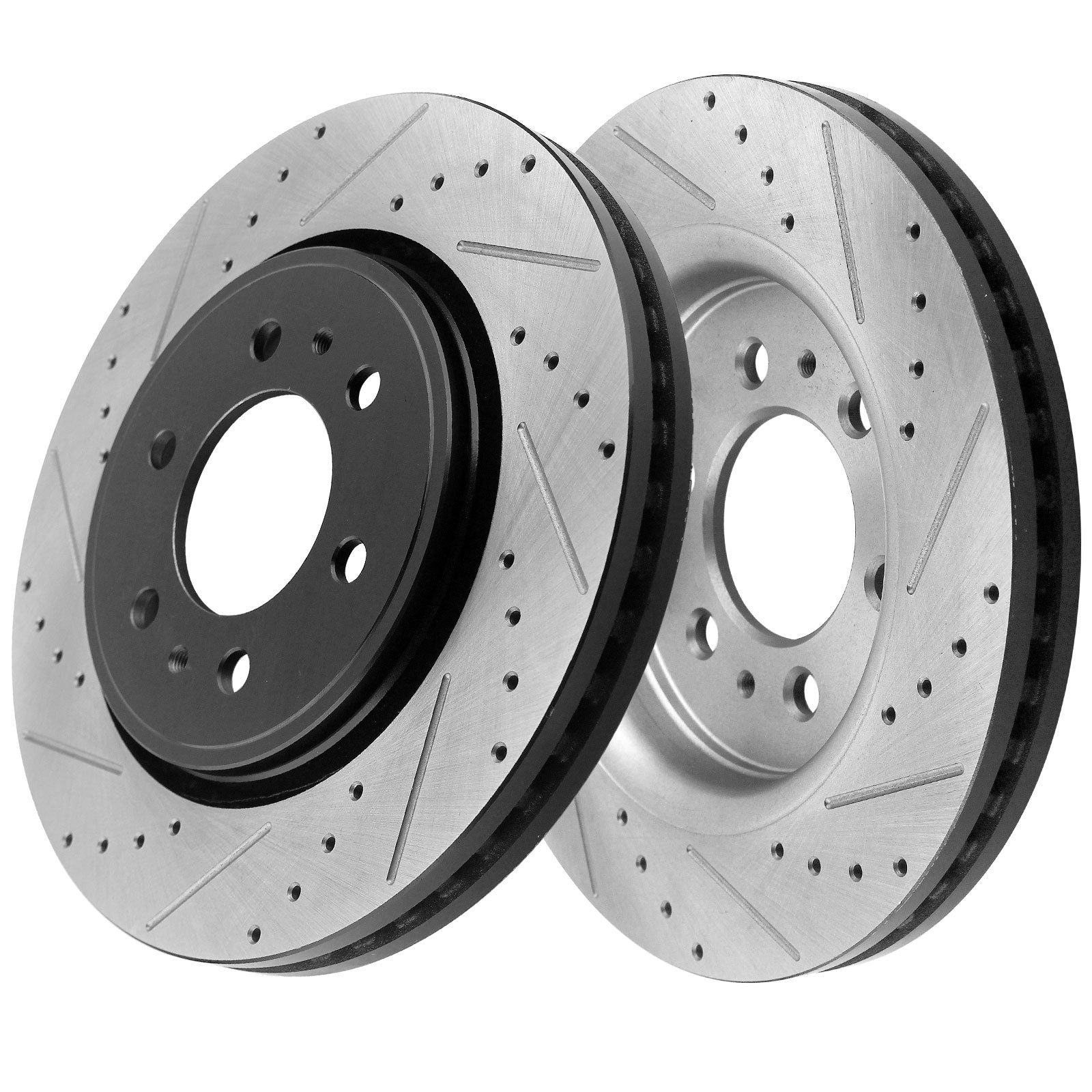

2x Front Drilled & Slotted Disc Brake Rotors  S-54153

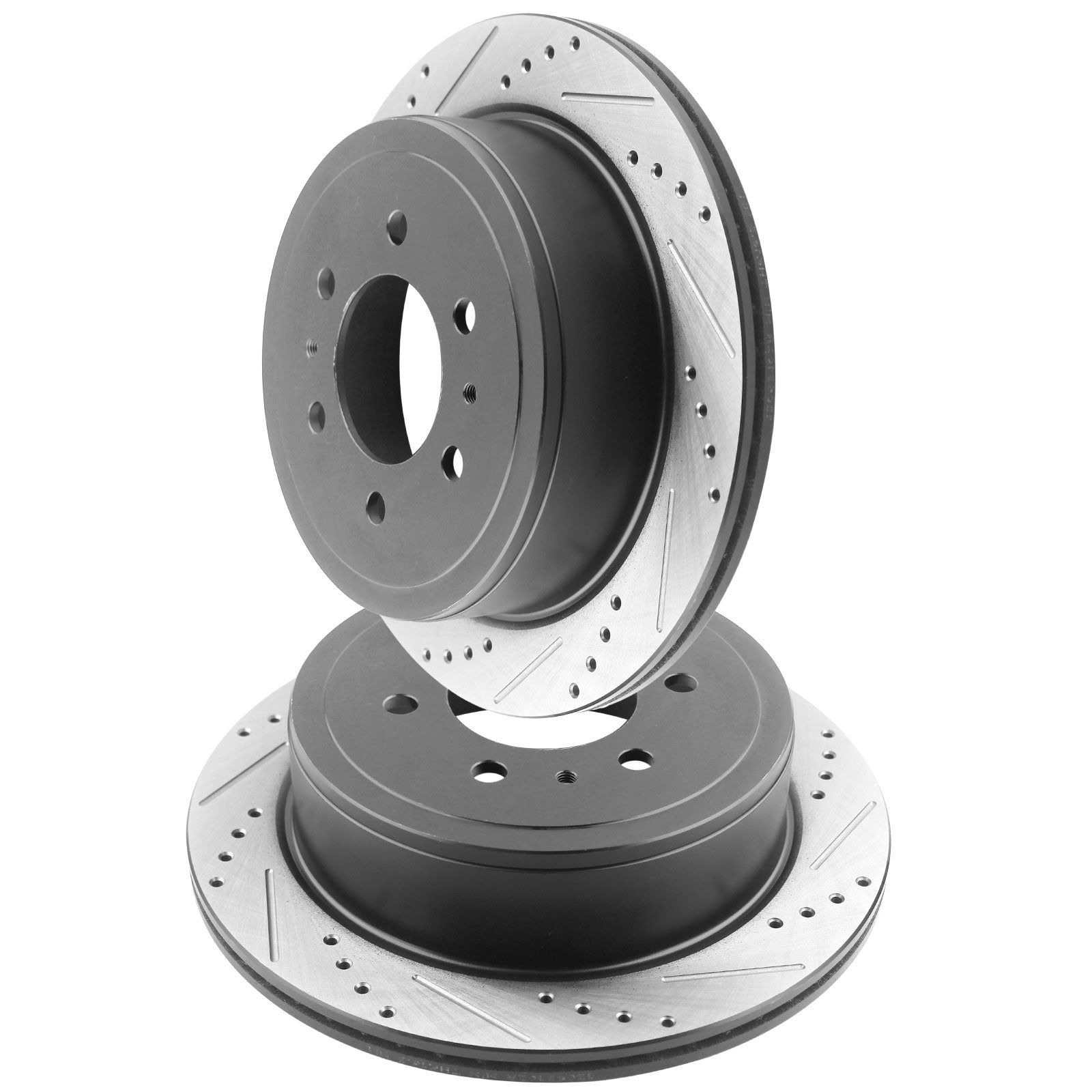

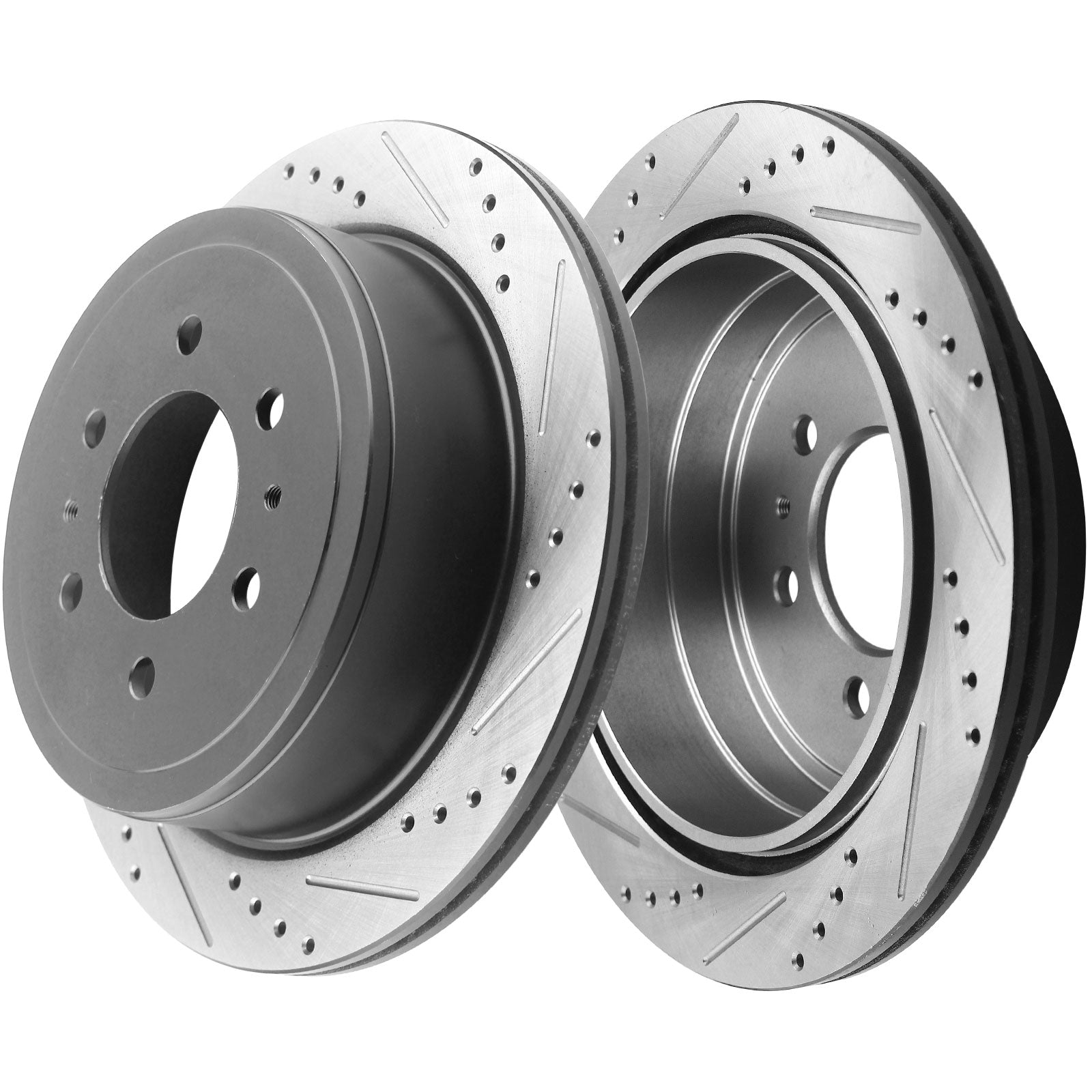

2x Rear Drilled & Slotted Disc Brake Rotors  S-54111

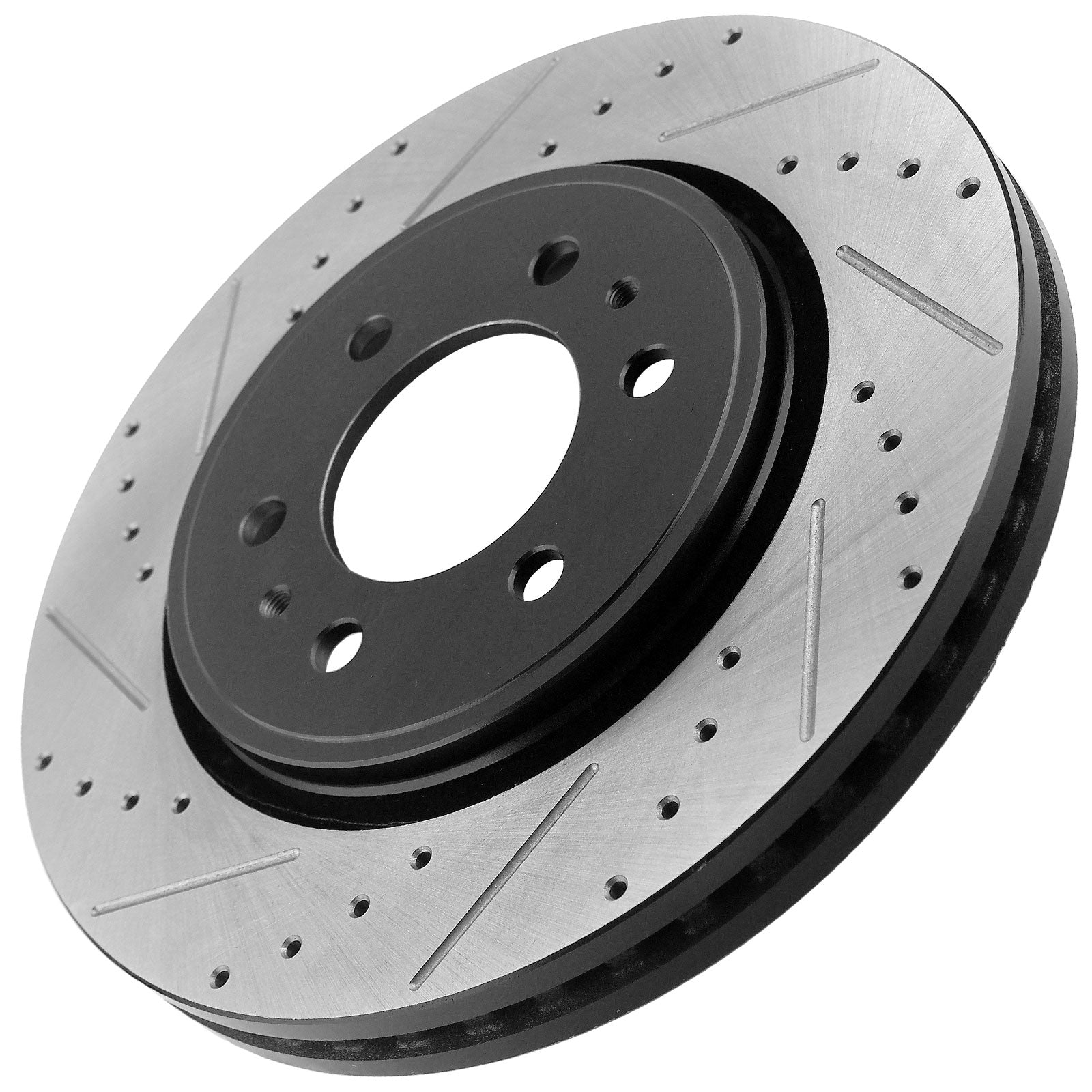

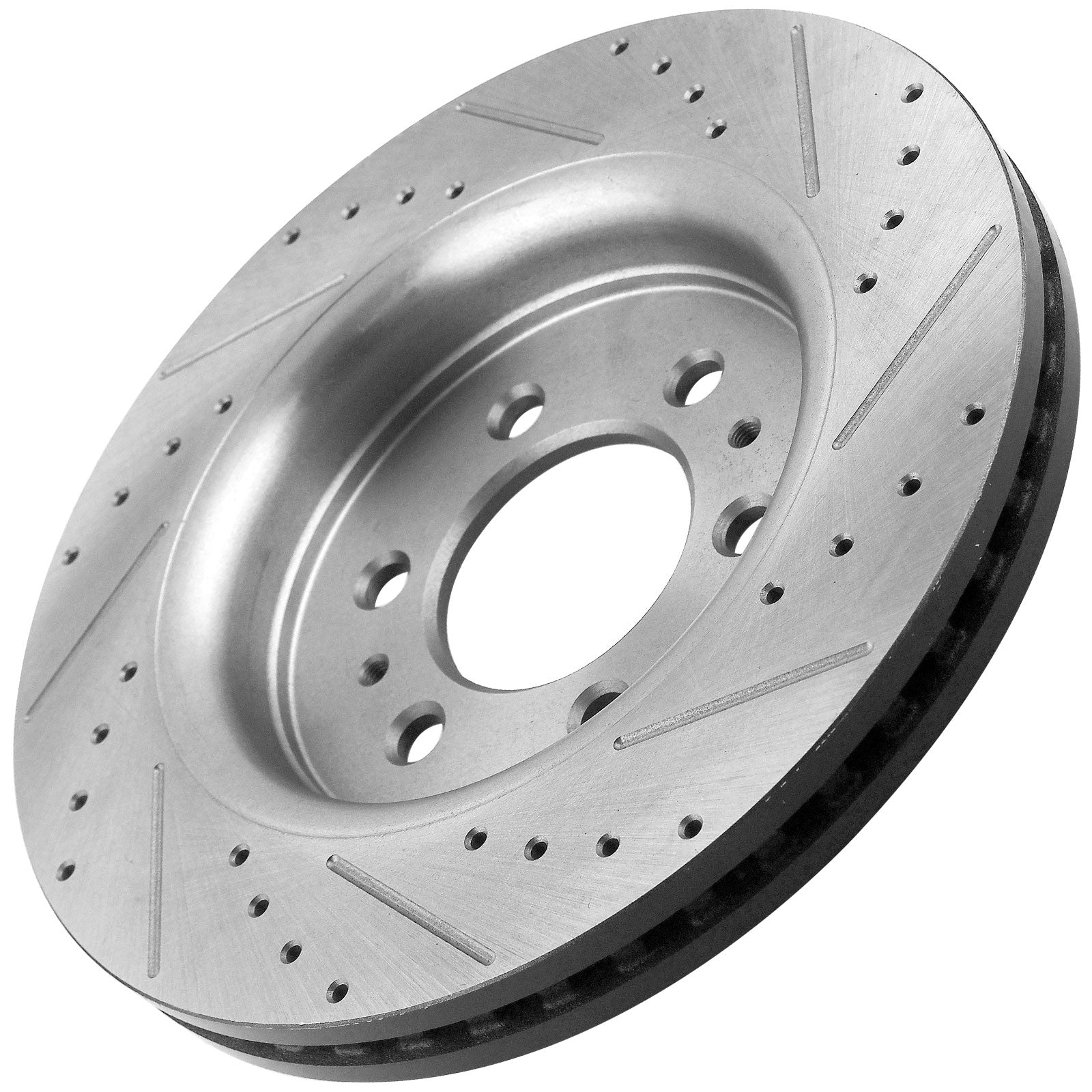

Front Brake rotors Specification

Outer Diameter mm: 350
(S)olid or (V)ented: Vented
Height mm: 49.5
Normal Thickness mm: 34
Min. Thick mm (Discard): 32
Hub Holes/Wheel Reg mm: 90
Number of Studs: 6
Bolt Circle Diameter mm: 135
Bolt/Hole Diameter/Stud Size: 16mm
Vane Style: Straight
Placement on Vehicle: Front, Left & Right
Finish: Black Electrolysis Coated£»E-coating£»Silver Zinc Dichromate
Interchange Part Number: Centric: 120.65119, Aimco: 54153; D1414
Mounting Type: Floating

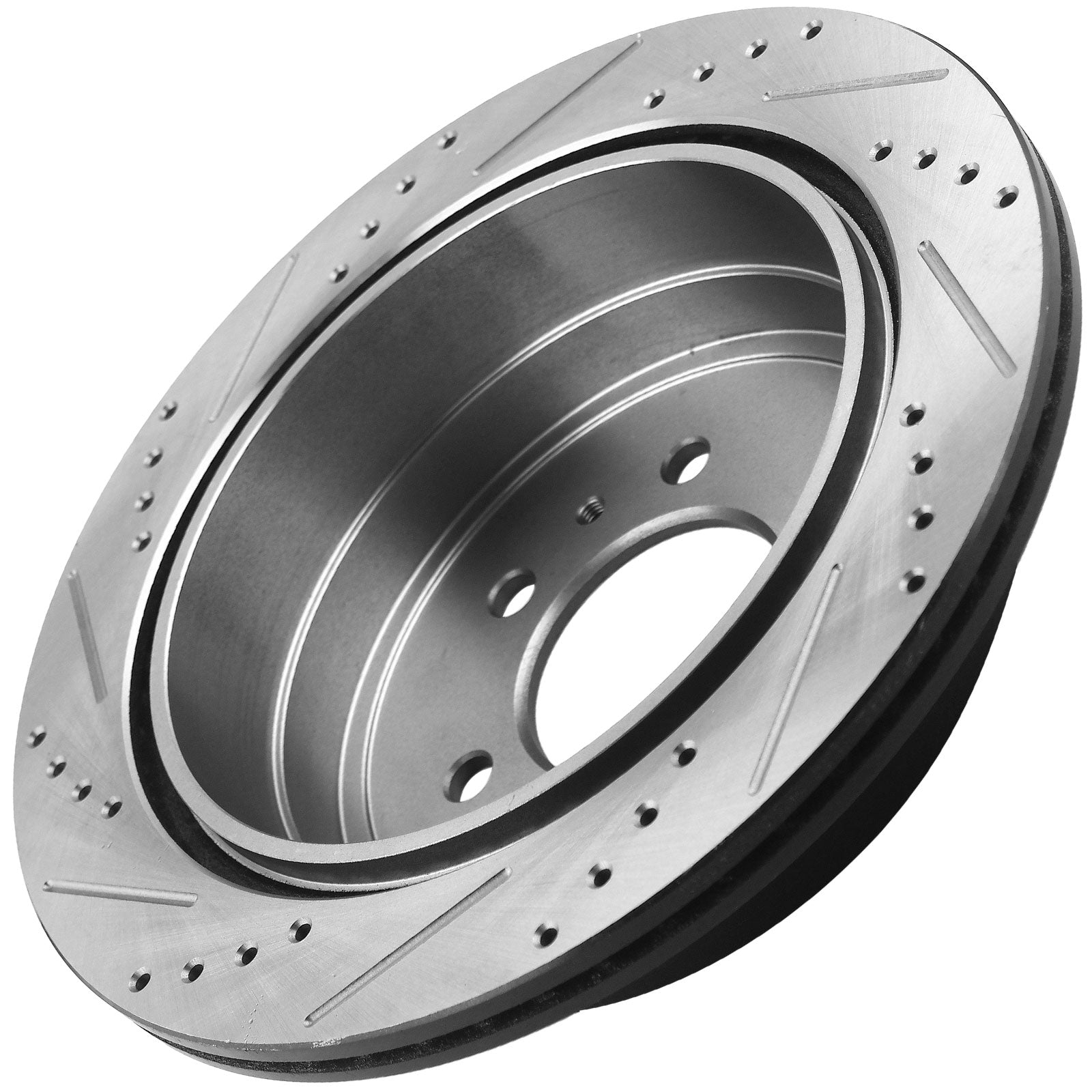

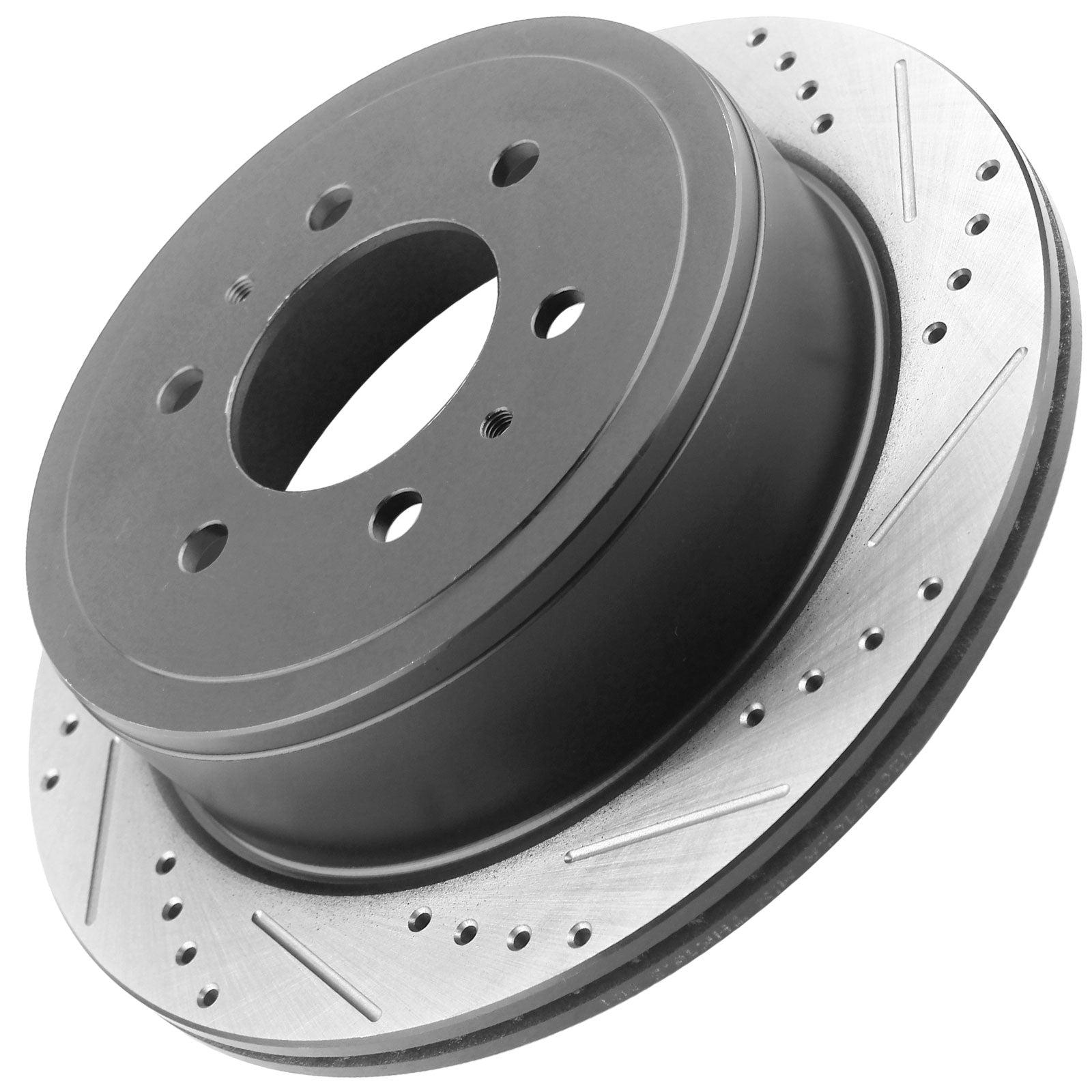

Rear Brake Rotors Specification
Outer Diameter mm: 348
Vented or Solid Rotor: Vented
Height mm: 86
Normal Thickness mm: 20
Min. Thick mm (Discard): 18.5
Hub Holes/Wheel Reg mm: 90
Number of Studs: 6
Bolt Circle Diameter mm: 135
Bolt/Hole Diameter/Stud Size: 15.3mm
Vane Style: Straight
Mounting Type: Floating / DIH
Placement on Vehicle: Left, Right, Rear
Surface Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric: 120.65102, Aimco: 54111
