Front & Rear Drilled & Slotted Brake Rotors for Cadillac Escalade ESV EXT, Chevrolet Avalanche Silverado Suburban 1500 Tahoe, GMC Sierra 1500 Yukon XL 1500

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Fit the Following Vehicles:
2007 - 2020 Cadillac Escalade (All Trim Levels)
2007 - 2020 Cadillac Escalade ESV (All Trim Levels)
2007 - 2013 Cadillac Escalade EXT (All Trim Levels)
2007 - 2013 Chevrolet Avalanche (All Trim Levels)
2007 - 2013 Chevrolet Silverado 1500 (4-Wheel Disc Brakes)
2014 - 2018 Chevrolet Silverado 1500 (All Trim Levels)
2015 - 2016 Chevrolet Suburban (All Trim Levels)
2020 Chevrolet Suburban (All Trim Levels)
2007 - 2014 Chevrolet Suburban 1500 (All Trim Levels)
2007 - 2020 Chevrolet Tahoe (All Trim Levels)
2007 - 2013 GMC Sierra 1500 (4-Wheel Disc Brakes)
2014 - 2018 GMC Sierra 1500 (All Trim Levels)
2007 GMC Sierra 1500 Classic (Denali)
2007 - 2018 GMC Yukon (All Trim Levels)
2015 - 2019 GMC Yukon XL (All Trim Levels)
2007 - 2014 GMC Yukon XL 1500 (All Trim Levels)

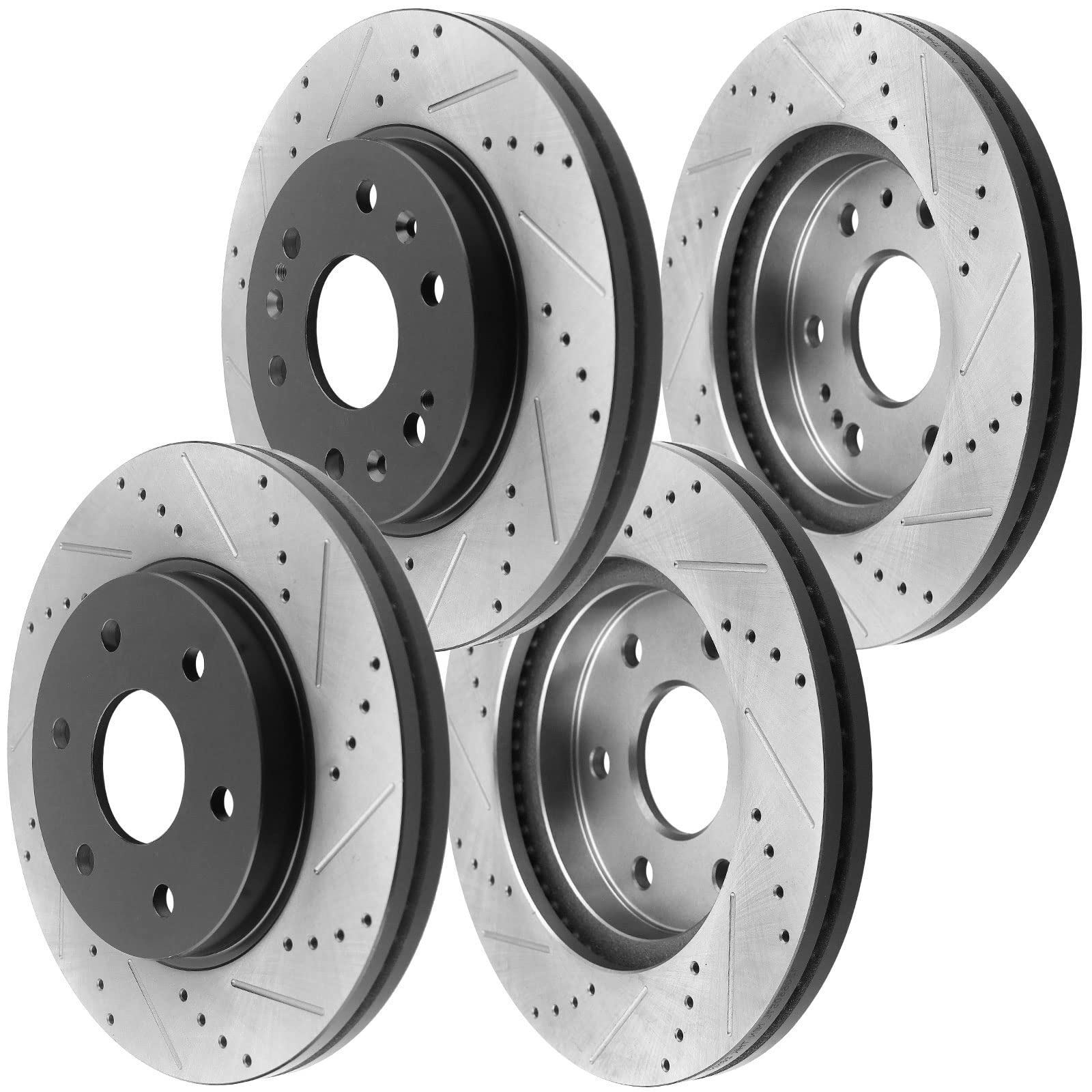

Includes
1x 120.66057L Front Drilled and Slotted Brake Rotor, Left
1x Front 120.66057R Drilled and Slotted Brake Rotor, Right
1x 120.66065L Rear Drilled and Slotted Brake Rotor, Left
1x120.66065R Rear Drilled and Slotted Brake Rotor, Right

Specification:
Front Brake Rotors
Outer Diameter mm: 330
(S)olid or (V)ented: Vented
Height mm: 55
Normal Thickness mm: 30
Min. Thick mm (Discard): 28
Hub Holes/Wheel Reg mm: 78.5
Number of Studs: 6
Bolt Circle Diameter mm: 140.5
Bolt/Hole Diameter/Stud Size: 16.08mm
Vane Style: Straight
Mounting Type: Floating
Front brake Rotors
Surface Finish: Silver Zinc Dichromate£»Black Electrolysis Coated£»E-coating
Placement on Vehicle: Front, Left, Right
Interchange Part Number: Centric: 120.66057, Aimco: 55097

Rear Brake Rotors
Outer Diameter mm: 345
(S)olid or (V)ented: Vented
Height mm: 85.4
Normal Thickness mm: 20
Min. Thick mm (Discard): 18.5
Hub Holes/Wheel Reg mm: 78.5
Number of Studs: 6
Bolt Circle Diameter mm: 139.7
Bolt/Hole Diameter/Stud Size: 16.5mm
Vane Style: Straight
Mounting Type: Floating / DIH
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric:12066065; Aimco:55133
