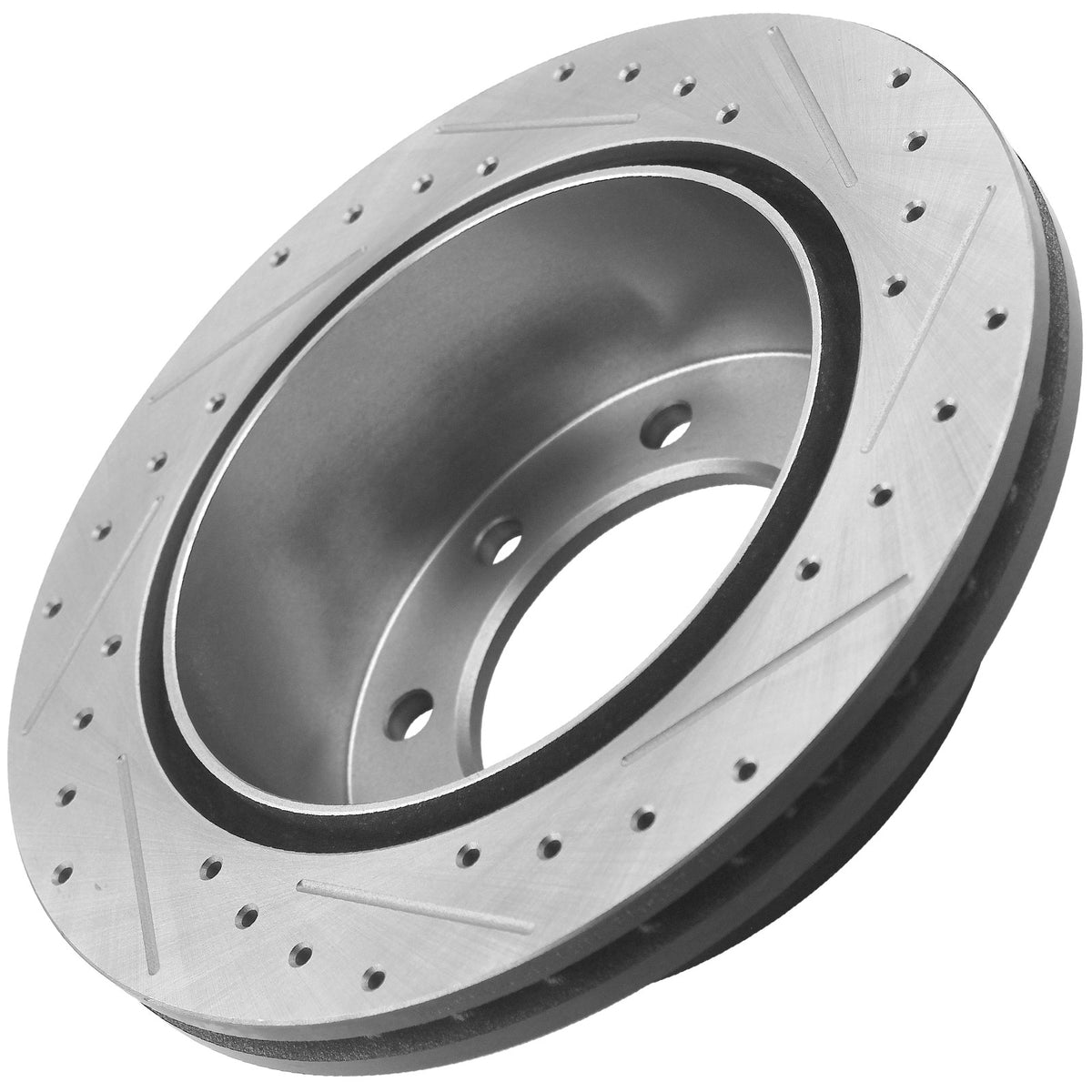

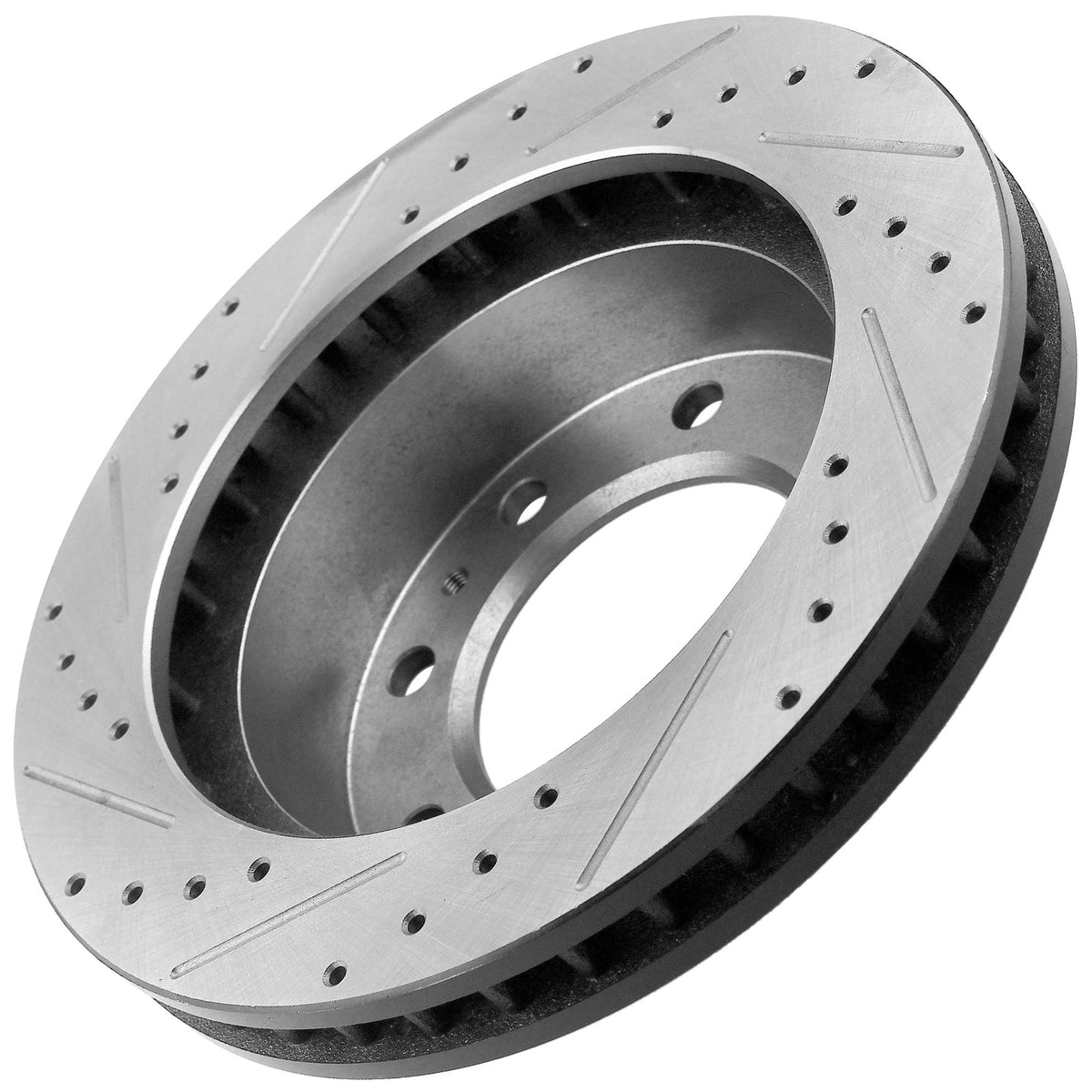

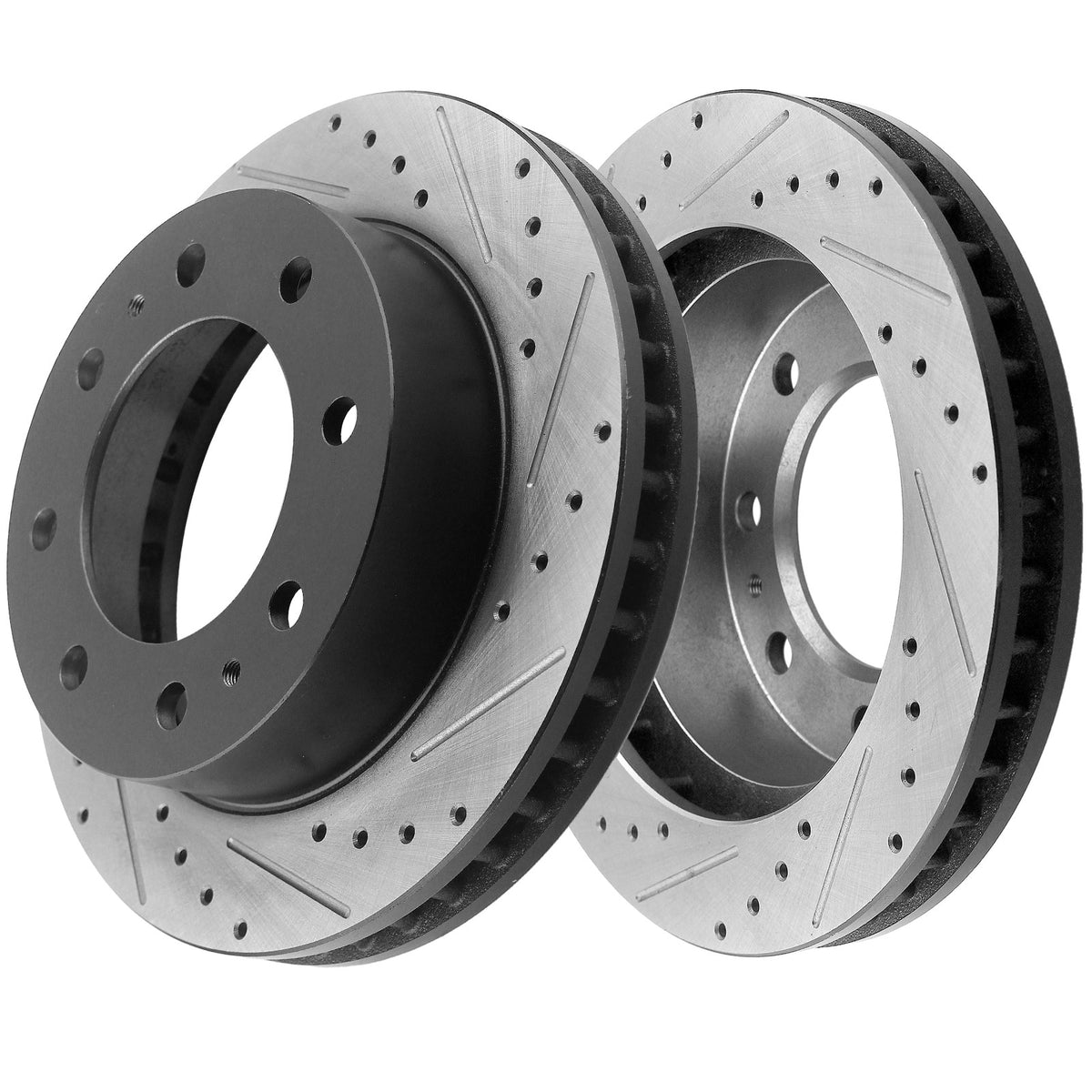

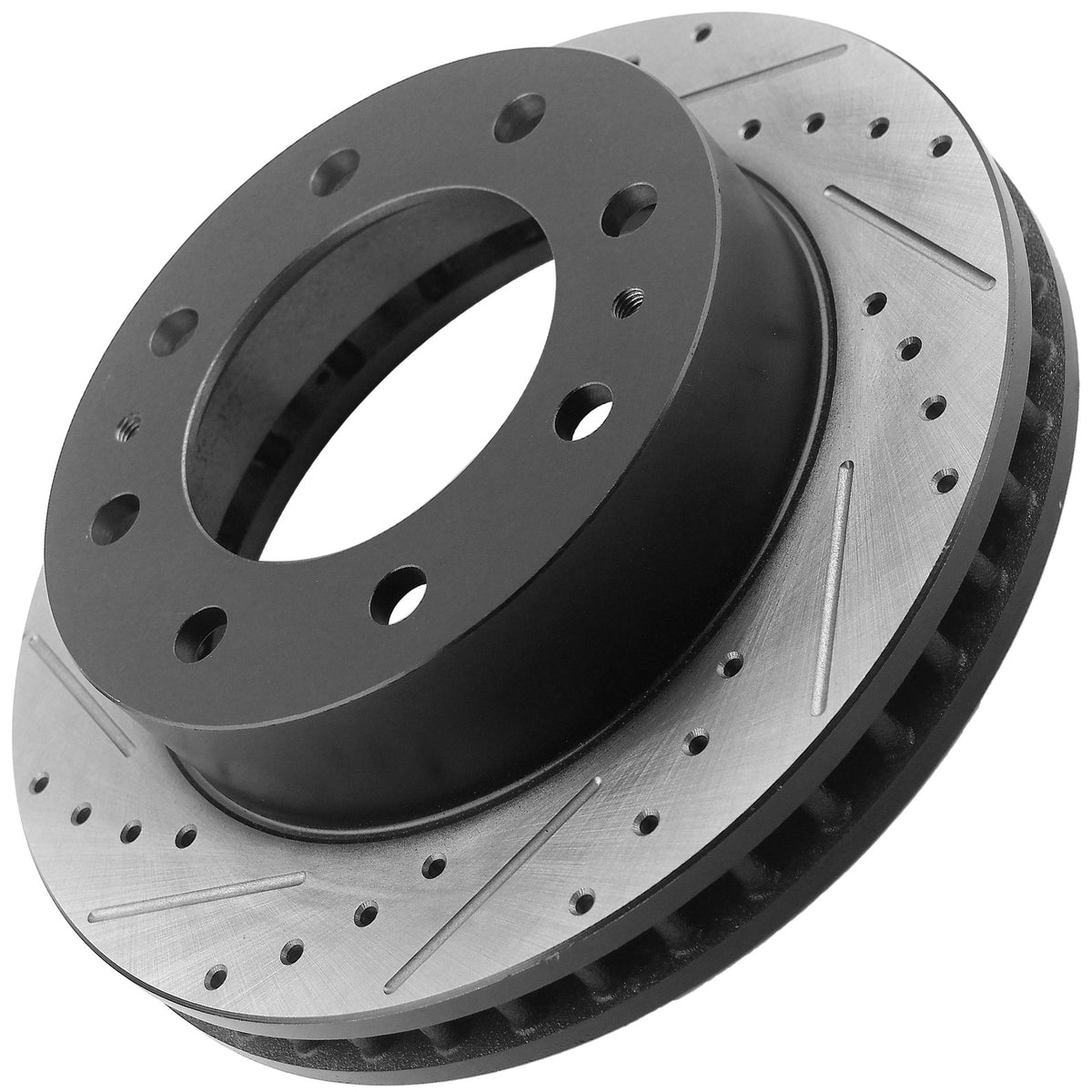

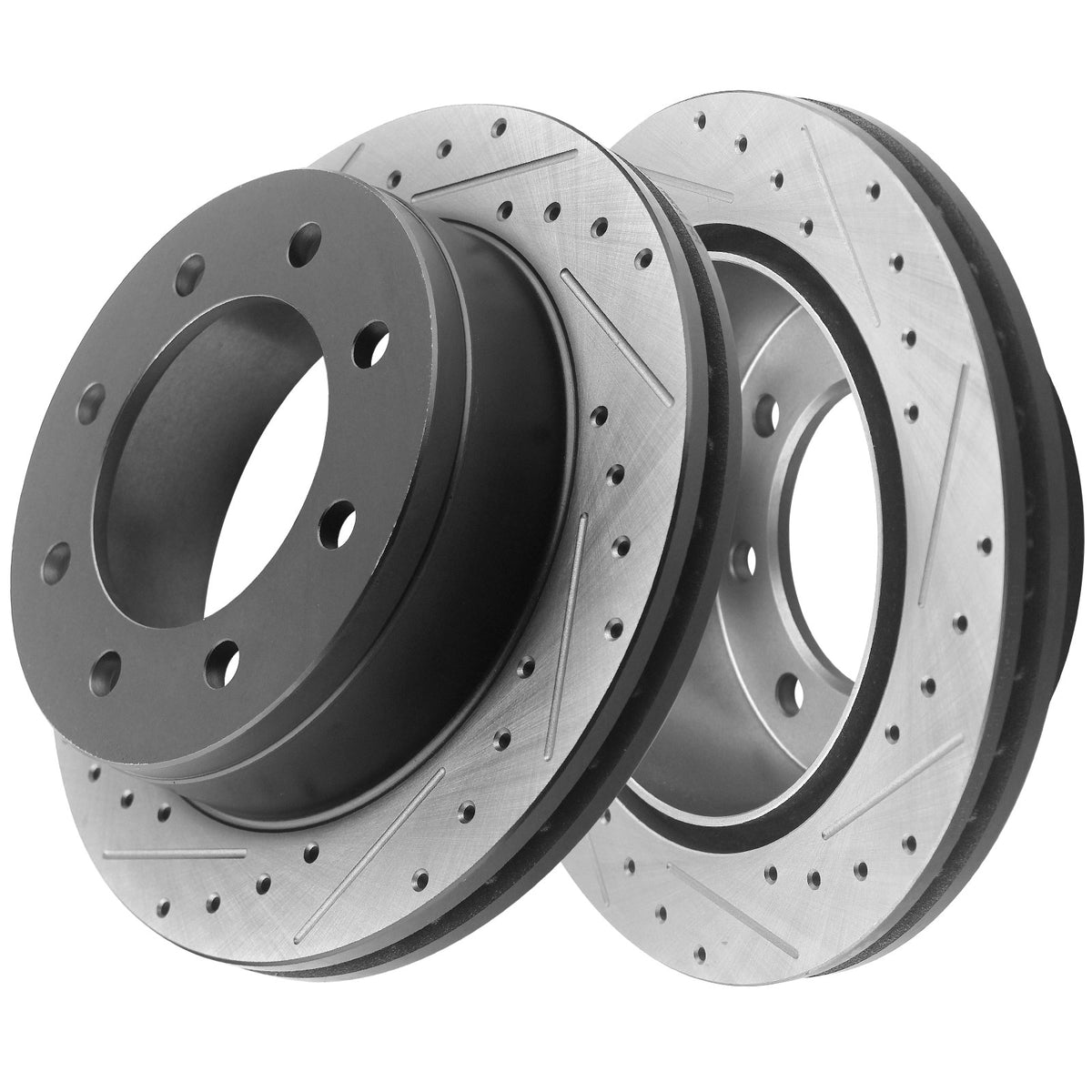

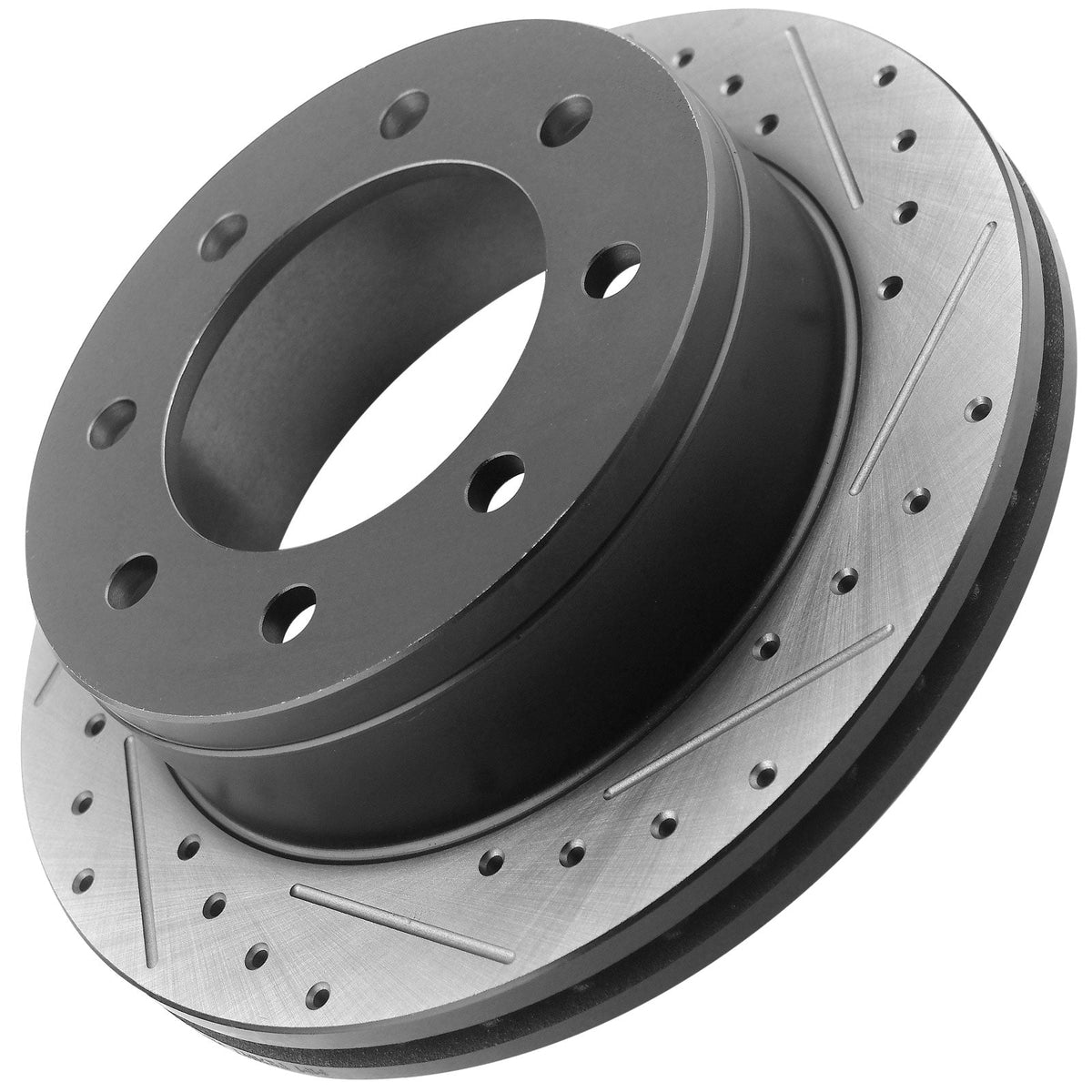

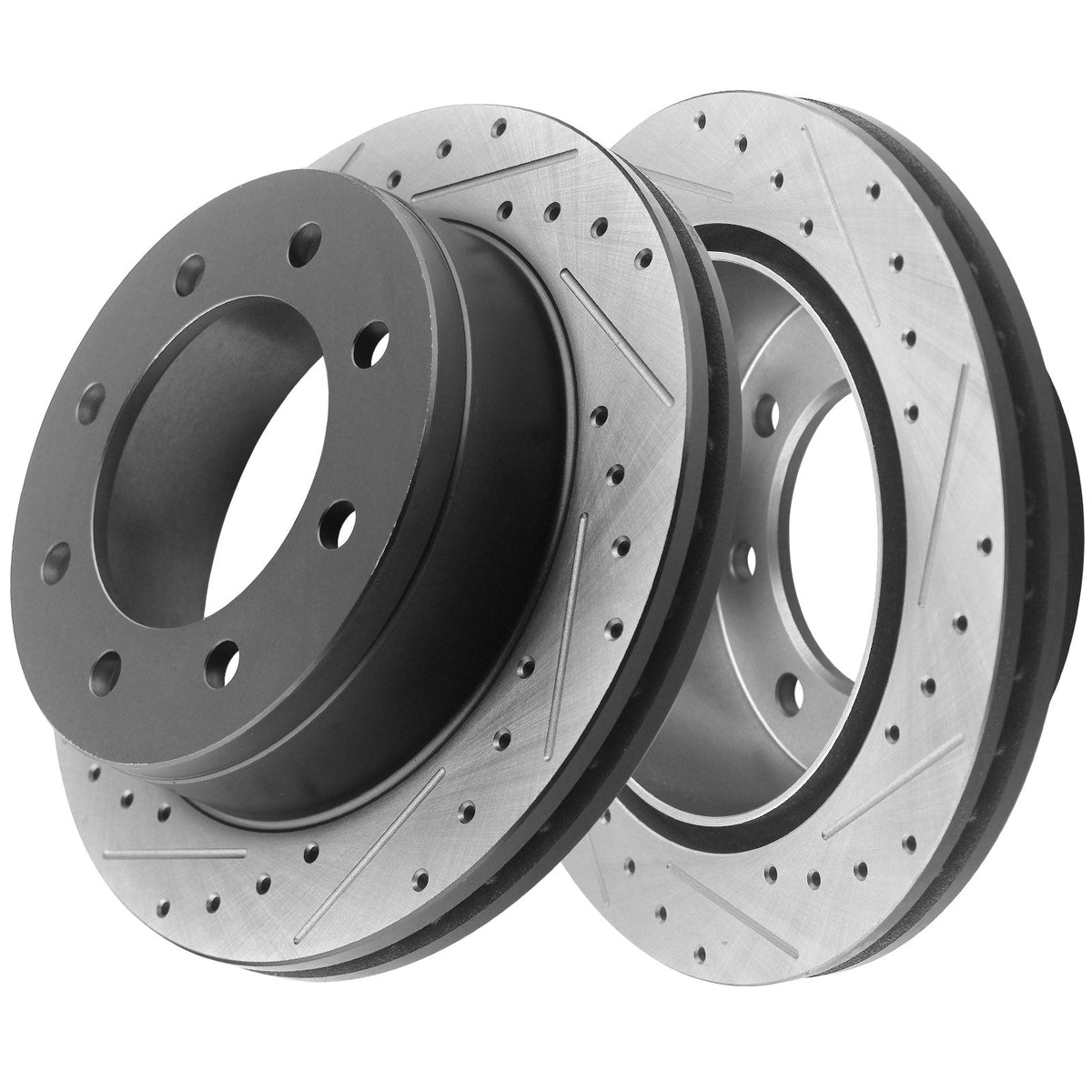

Front Drilled and Slotted Disc Brake Rotors for Chevrolet Avalanche Suburban 2500 Express Silverado 2500 3500, GMC Savana 2500

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Fit the Following Vehicles:

2002 - 2006 Chevrolet Avalanche 2500 (8 Lug Models ONLY)
2006 - 2007 Chevrolet Express 2500 (8500LB GVW & 8600LB GVW; 8 Lug Models with Diesel Engine ONLY)
2008 - 2014 Chevrolet Express 2500 (8 Lug Models with Diesel Engine ONLY
2003 - 2006 Chevrolet Express 3500 (8600LB GVW & 9600LB GVW; Models w/SRW and 91mm Tall Rear Disc ONLY)
2007 - 2012 Chevrolet Express 3500 (Under 10000LB GVW; Models w/SRW and 91mm Tall Rear Disc ONLY
2013 - 2016 Chevrolet Express 3500 (Base; Except 14040LB GVW; Models w/SRW and 91mm Tall Rear Disc ONLY)
2013 - 2016 Chevrolet Express 3500 (LS, LT; Models w/SRW and 91mm Tall Rear Disc ONLY)
2017 - 2019 Chevrolet Express 3500 (9900LB GVW; Models w/SRW and 91mm Tall Rear Disc ONLY)
2002 - 2004 Chevrolet Silverado 2500 (2WD or 4WD Models w/Manual Transmission ONLY)
2001 - 2004 Chevrolet Silverado 2500 Hd (Excludes 4 Wheel Steering Models)
2005 - 2010 Chevrolet Silverado 2500 Hd (All Models)
2004 - 2006 Chevrolet Silverado 3500 (Models w/ SRW)
2007 - 2010 Chevrolet Silverado 3500 Hd (Models w/ SRW)
2002 - 2006 Chevrolet Suburban 2500 (2WD or 4WD Models with a 4.83" Hub Hole in the Rotor (Will NOT fit 4 Wheel Steering or 2 Wheel Steering Models))
2008 - 2013 Chevrolet Suburban 2500 (All Models)
2006 - 2007 GMC Savana 2500 (8500LB GVW & 8600LB GVW; 8 Lug Models with Diesel Engine ONLY)
2008 - 2014 GMC Savana 2500 (8 Lug Models w/Diesel Engine ONLY)

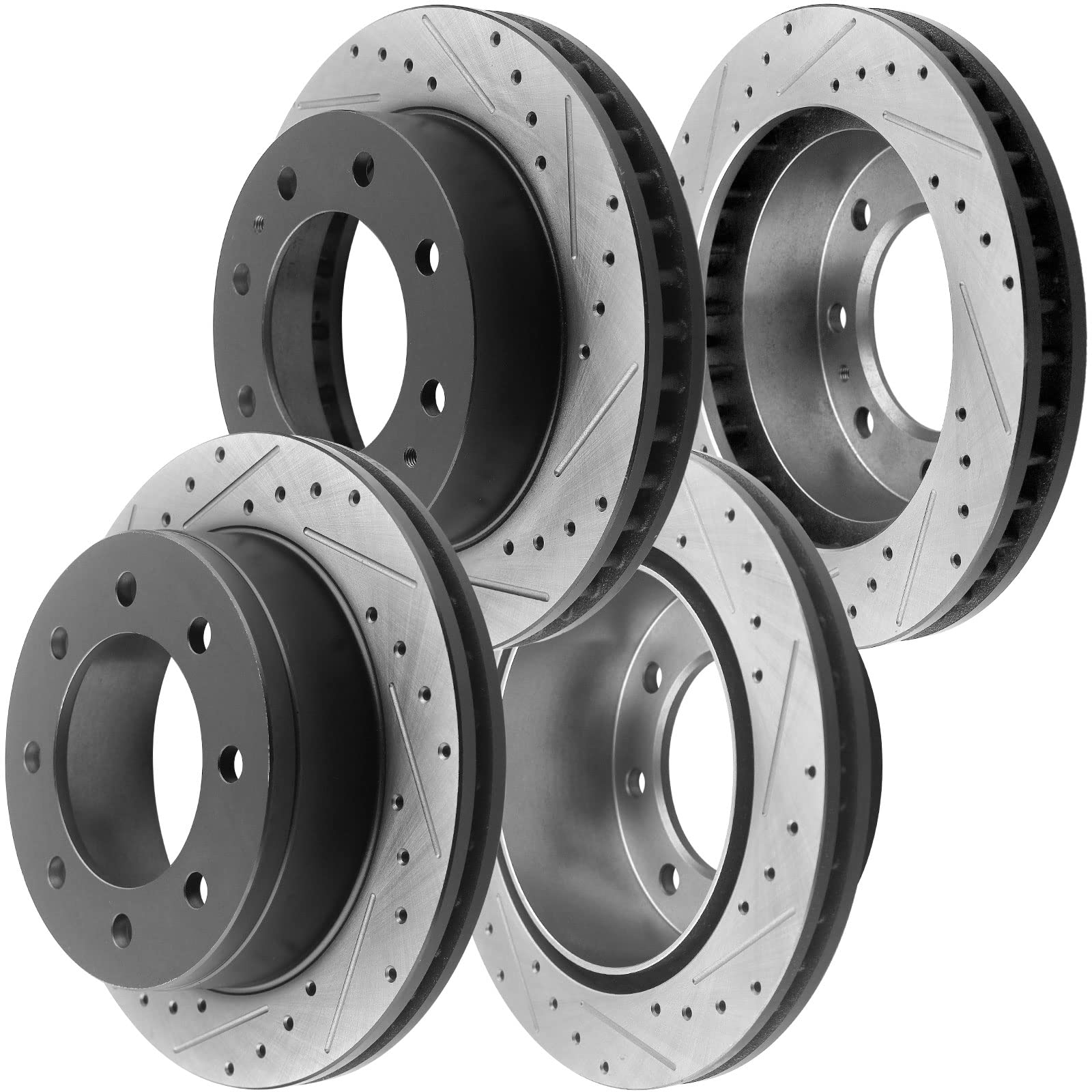

Includes
1x 120.66059L Front Drilled and Slotted Brake Rotor, Left
1x 120.66059R Front Drilled and Slotted Brake Rotor, Right
1x 120.66044L Rear Drilled and Slotted Brake Rotor, Left
1x120.66044R Rear Drilled and Slotted Brake Rotor, Right

Specification:
Front Brake Rotors
Outer Diameter mm: 324.6
(S)olid or (V)ented: V
Height mm: 89.3
Normal Thickness mm: 37.8
Min. Thick mm (Discard): 36.5
Hub Holes/Wheel Reg mm: 118.2
Number of Studs: 8
Bolt Circle Diameter mm: 165.1
Bolt/Hole Diameter/Stud Size: 16.4mm
Vane Style: Straight
Mounting Type: Floating
Placement on Vehicle: Front, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric: 120.66059, Aimco: 55072


Rear Brake Rotors
Outer Diameter mm: 330
(S)olid or (V)ented: V
Height mm: 93.3
Normal Thickness mm: 29
Min. Thick mm (Discard): 27
Hub Holes/Wheel Reg mm: 122.8
Number of Studs: 8
Bolt Circle Diameter mm: 165.1
Bolt/Hole Diameter/Stud Size: 16.5mm
Vane Style: Straight
Mounting Type: Floating / DIH
Placement on Vehicle: Rear, Left & Right
Finish:Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric: 120.66044£» Aimco: 55055
