Front Drilled and Slotted Disc Brake Rotors for 2007-2013 Acura MDX, 2010-2013 Acura ZDX, 2009-2015 Honda Pilot

MotorbyMotor Cross Disc Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Fit the Following Vehicles:
Replacement for 2007 - 2013 Acura MDX (All Trim Levels)
Replacement for 2010 - 2013 Acura ZDX (All Trim Levels)
Replacement for 2009 - 2015 Honda Pilot (All Trim Levels)

Includes
1x 120.40071L Front Disc Brake Rotor, Left-31468
1x 120.40071R Front Disc Brake Rotor, Right-31468
1x 120.40072L Rear Disc Brake Rotor, Left-31469
1x 1204.0072R Rear Disc Brake Rotor, Right-31469

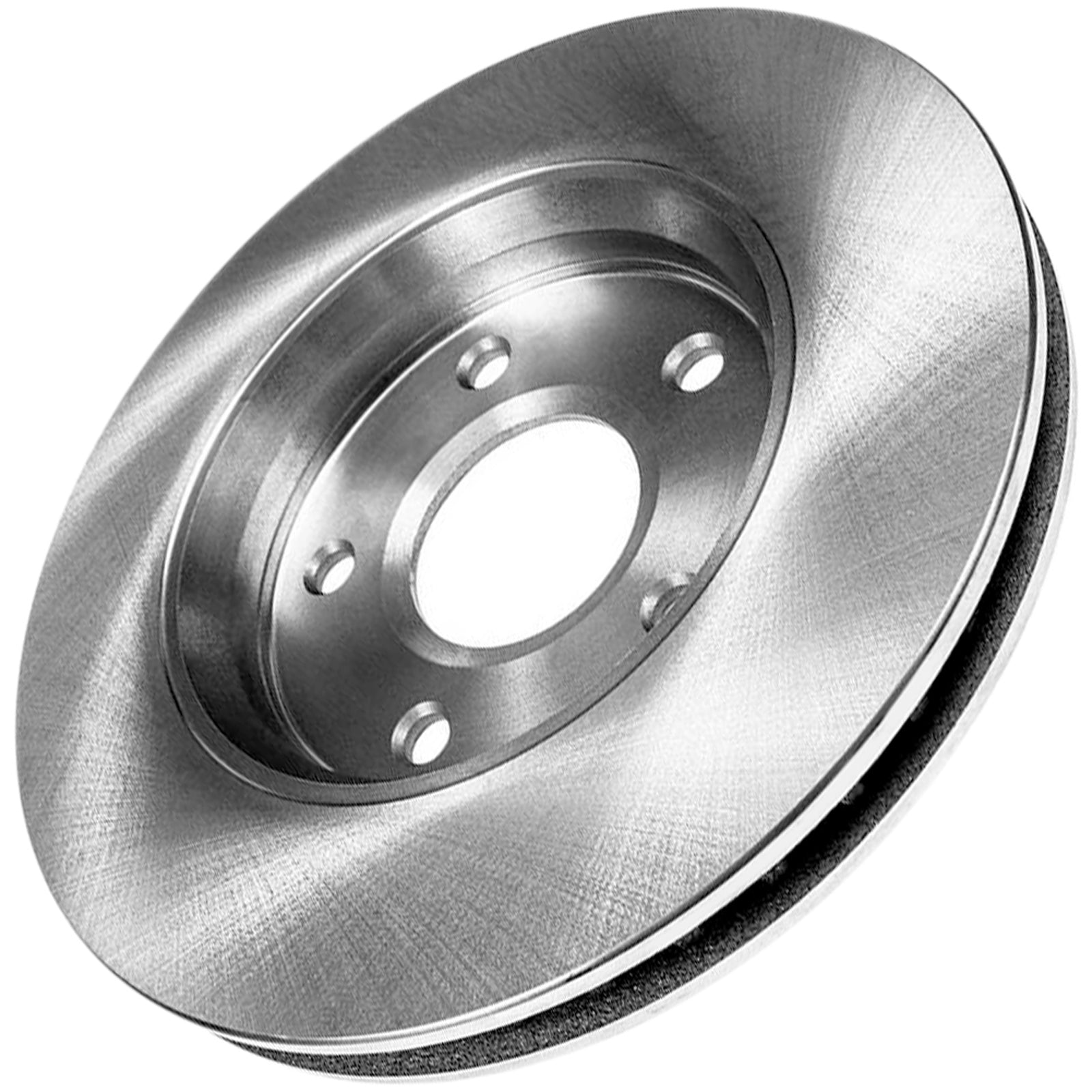

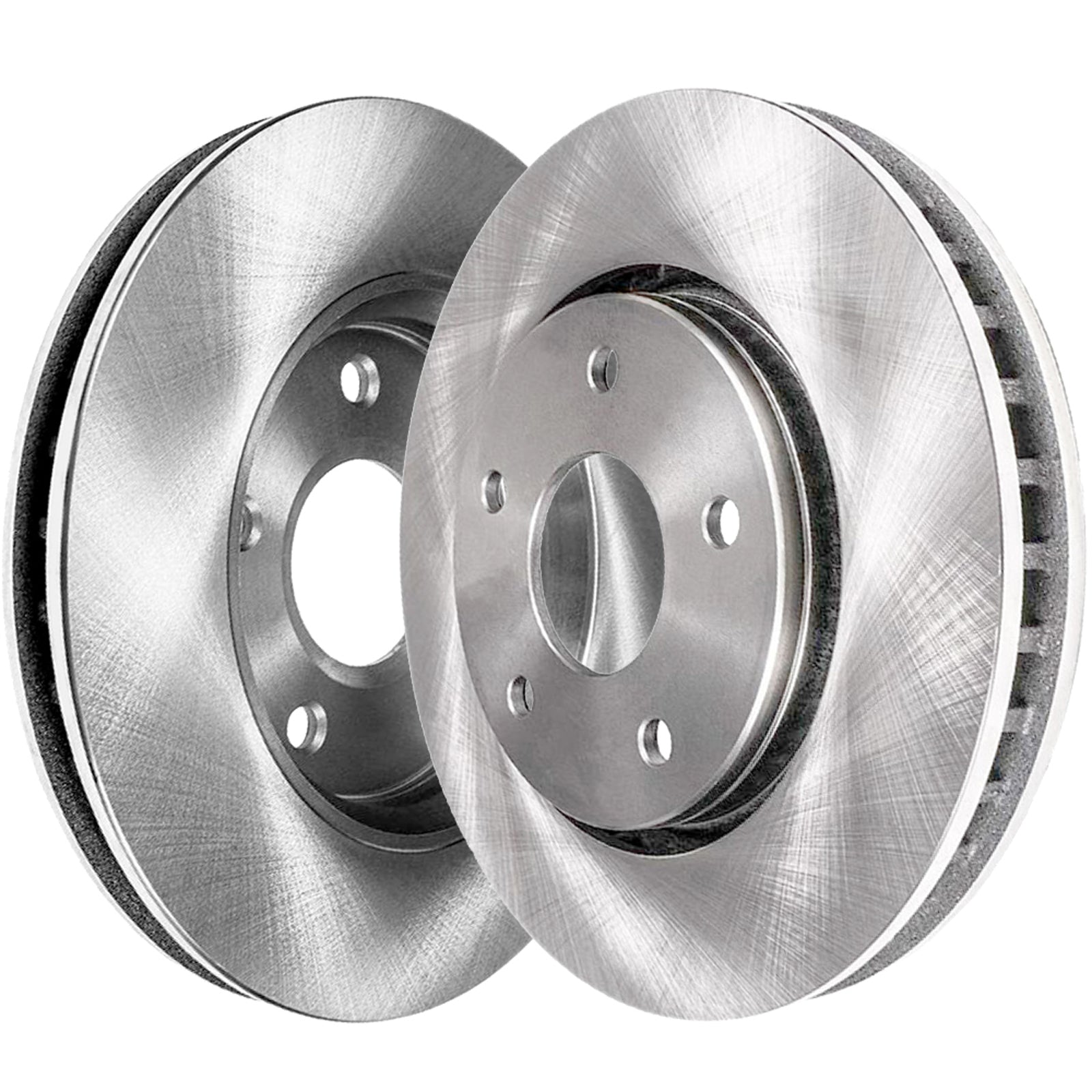

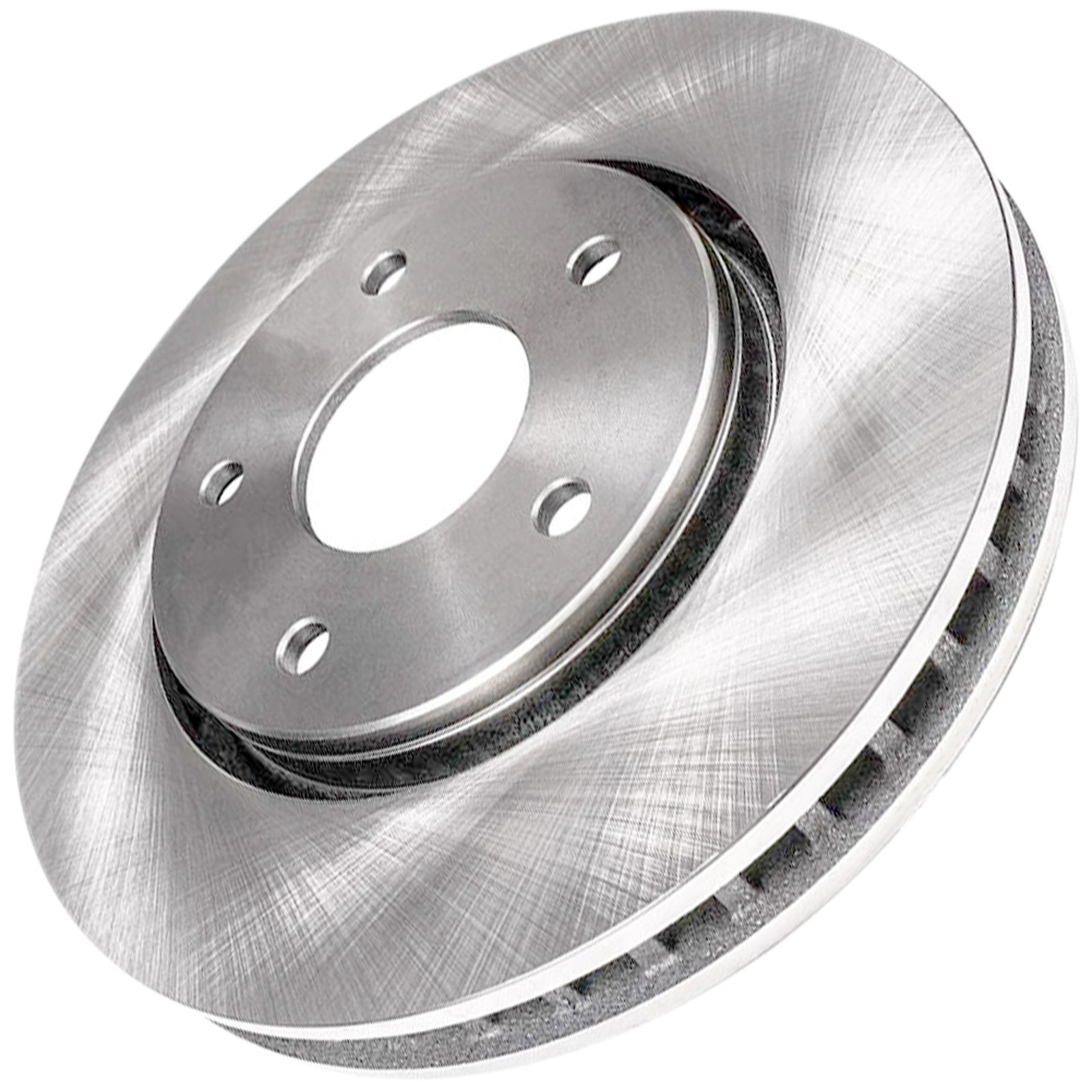

Front Brake Rotors
Outer Diameter mm: 330
(S)olid or (V)ented: Vented
Height mm: 47.3
Normal Thickness mm: 28
Min. Thick mm (Discard): 26
Hub Holes/Wheel Reg mm: 70.1
Number of Studs: 5
Bolt Circle Diameter mm: 120
Bolt/Hole Diameter/Stud Size: 14.5mm
Mounting Type: Floating
Placement on Vehicle: Front, Left, Right
Surface Finish: Black Electrolysis Coated;E-coating;Silver Zinc Dichromate
Interchange Part Number: Centric: 12040071, Aimco: 31468
Vane Style: Straight

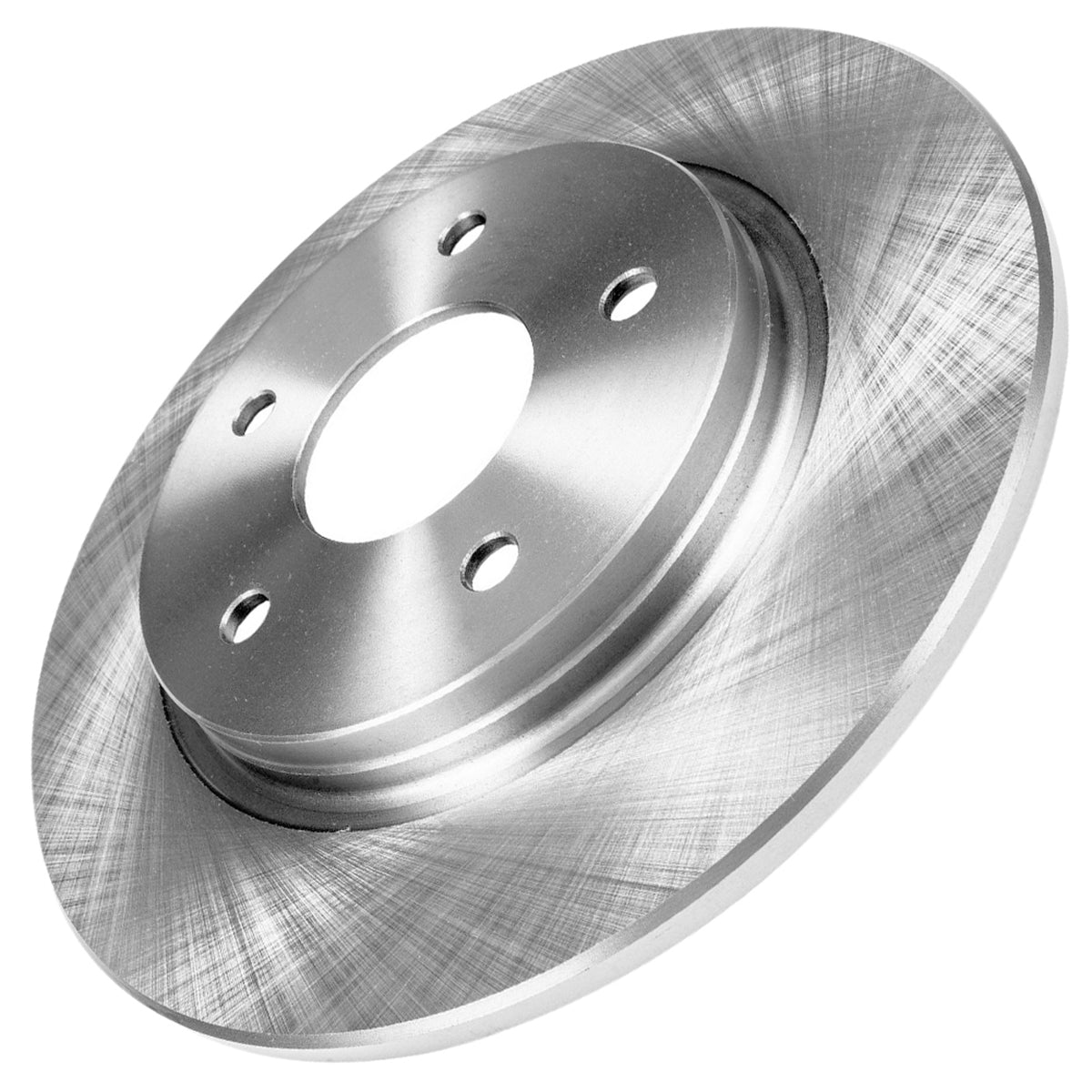

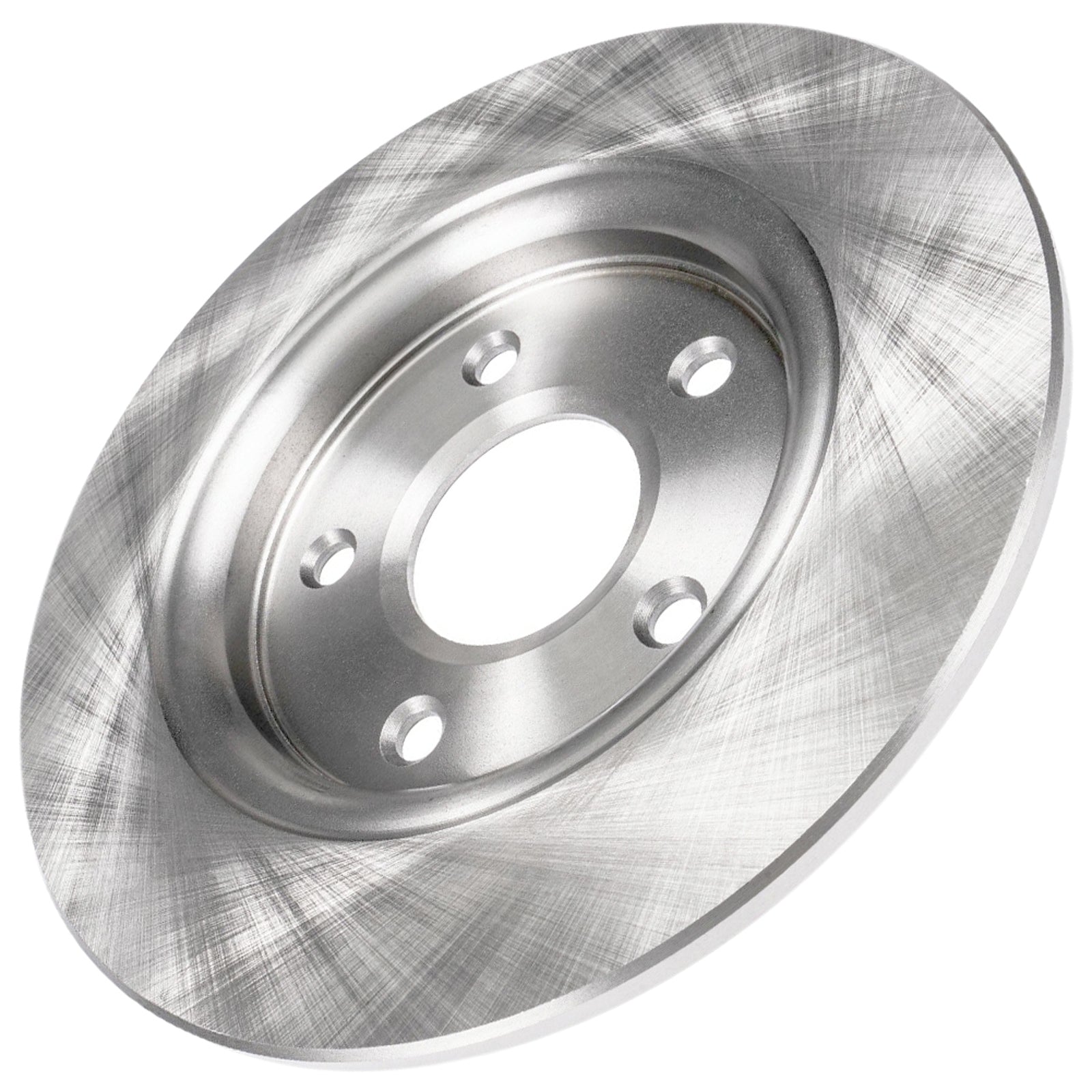

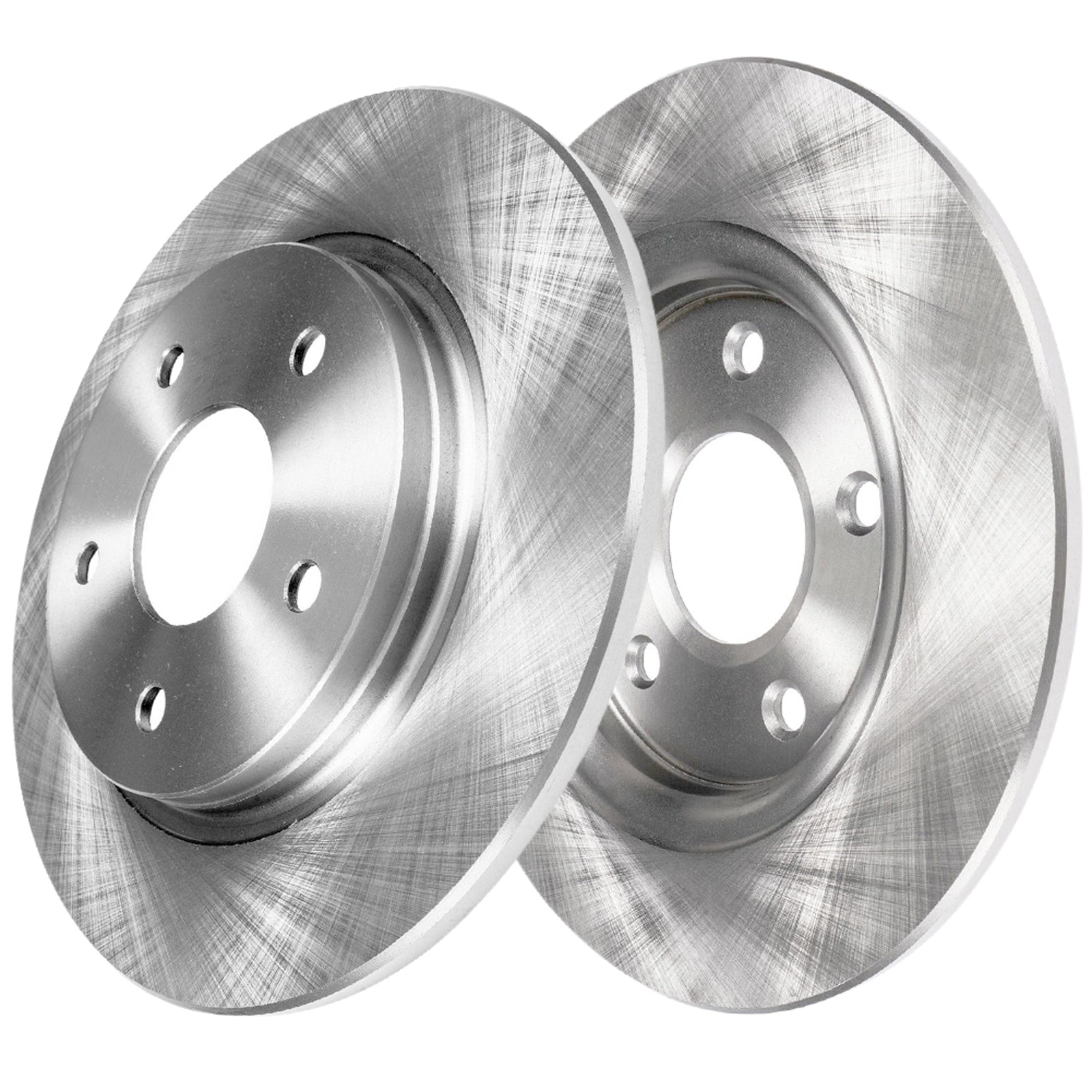

Rear Brake Rotors
Outer Diameter mm: 334
(S)olid or (V)ented: Solid
Height mm: 63.8
Normal Thickness mm: 11
Min. Thick mm (Discard): 9
Hub Holes/Wheel Reg mm: 70.1
Number of Studs: 5
Bolt Circle Diameter mm: 120
Bolt/Hole Diameter/Stud Size: 14.6mm
Mounting Type: Floating / DIH
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Aimco:31469;Centric:12040072
