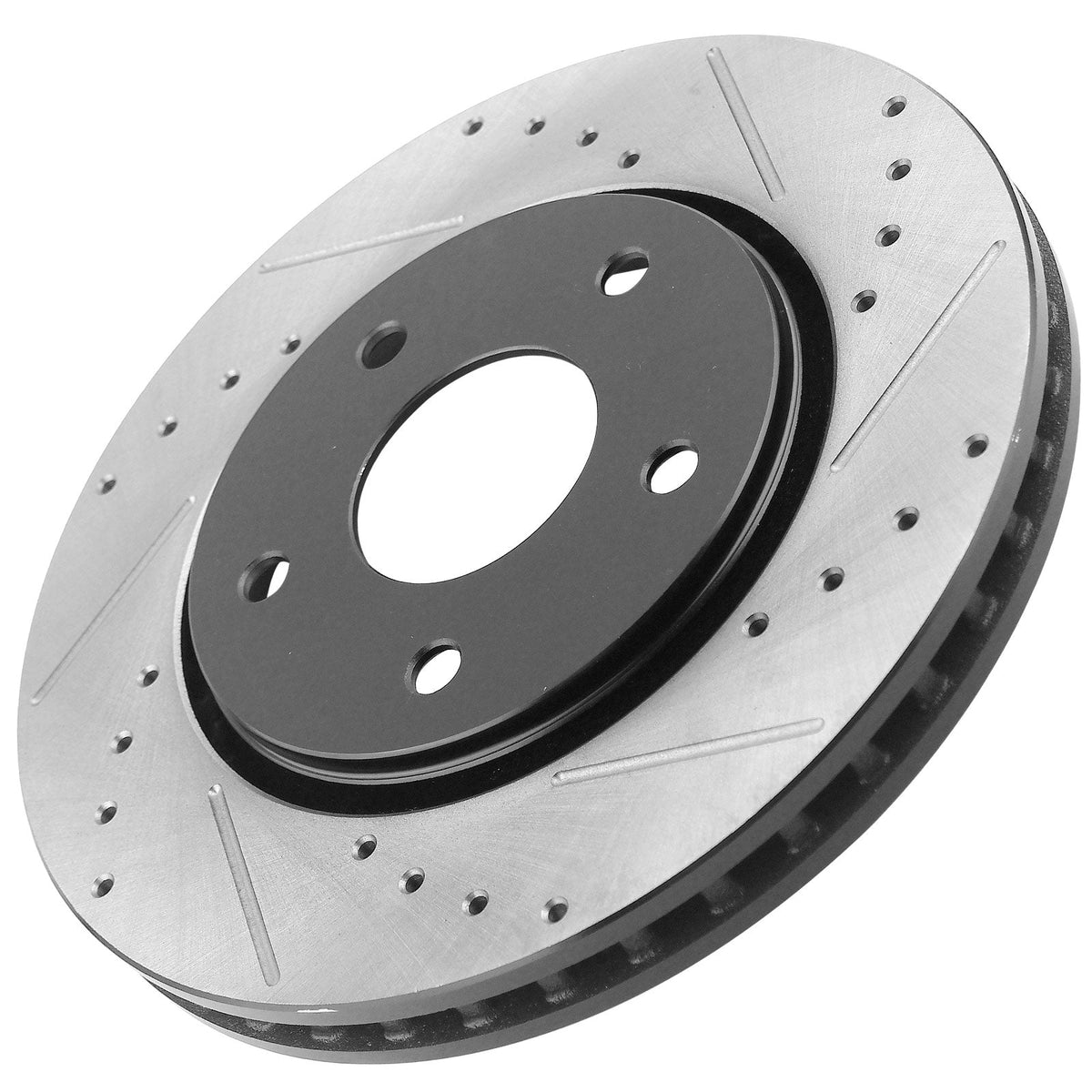

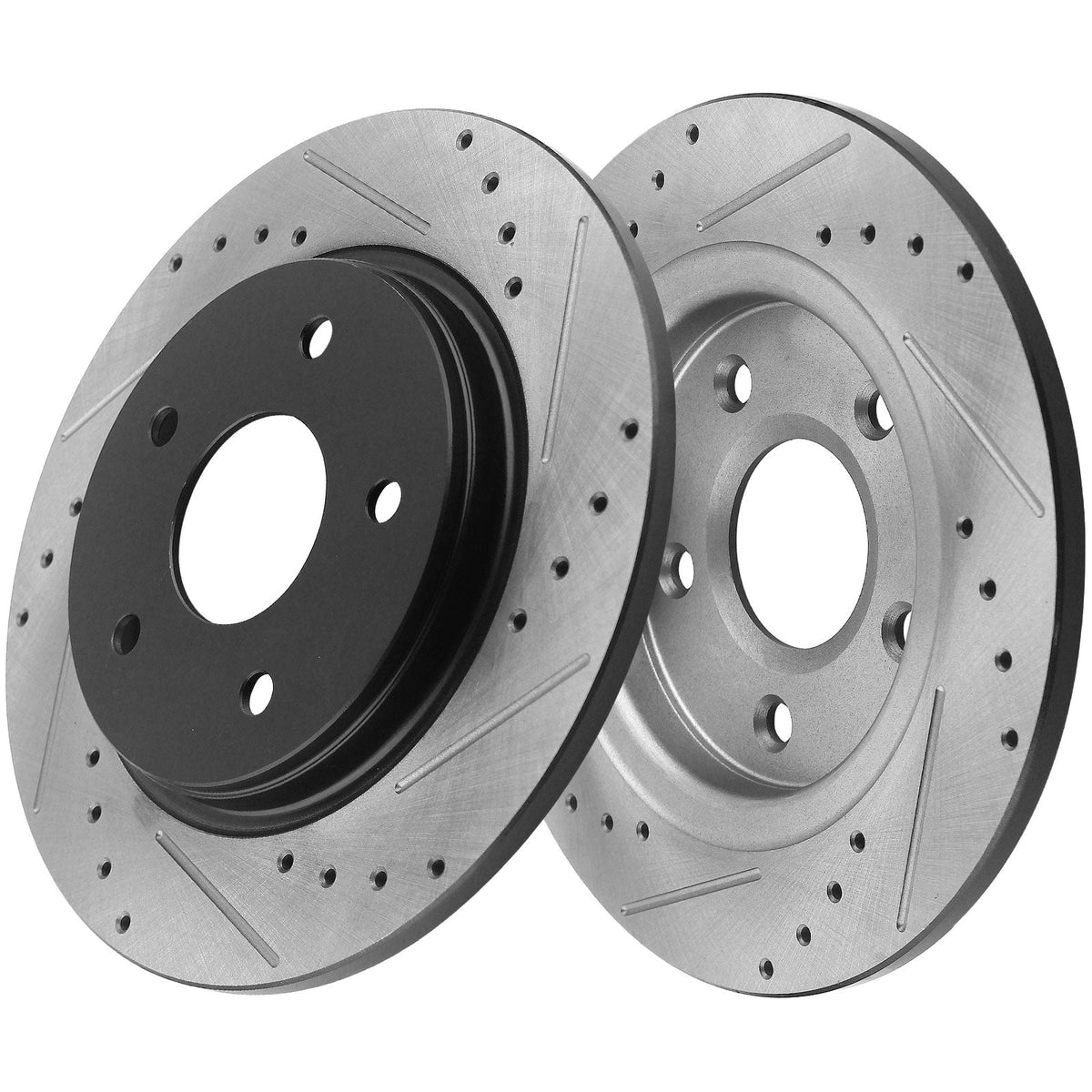

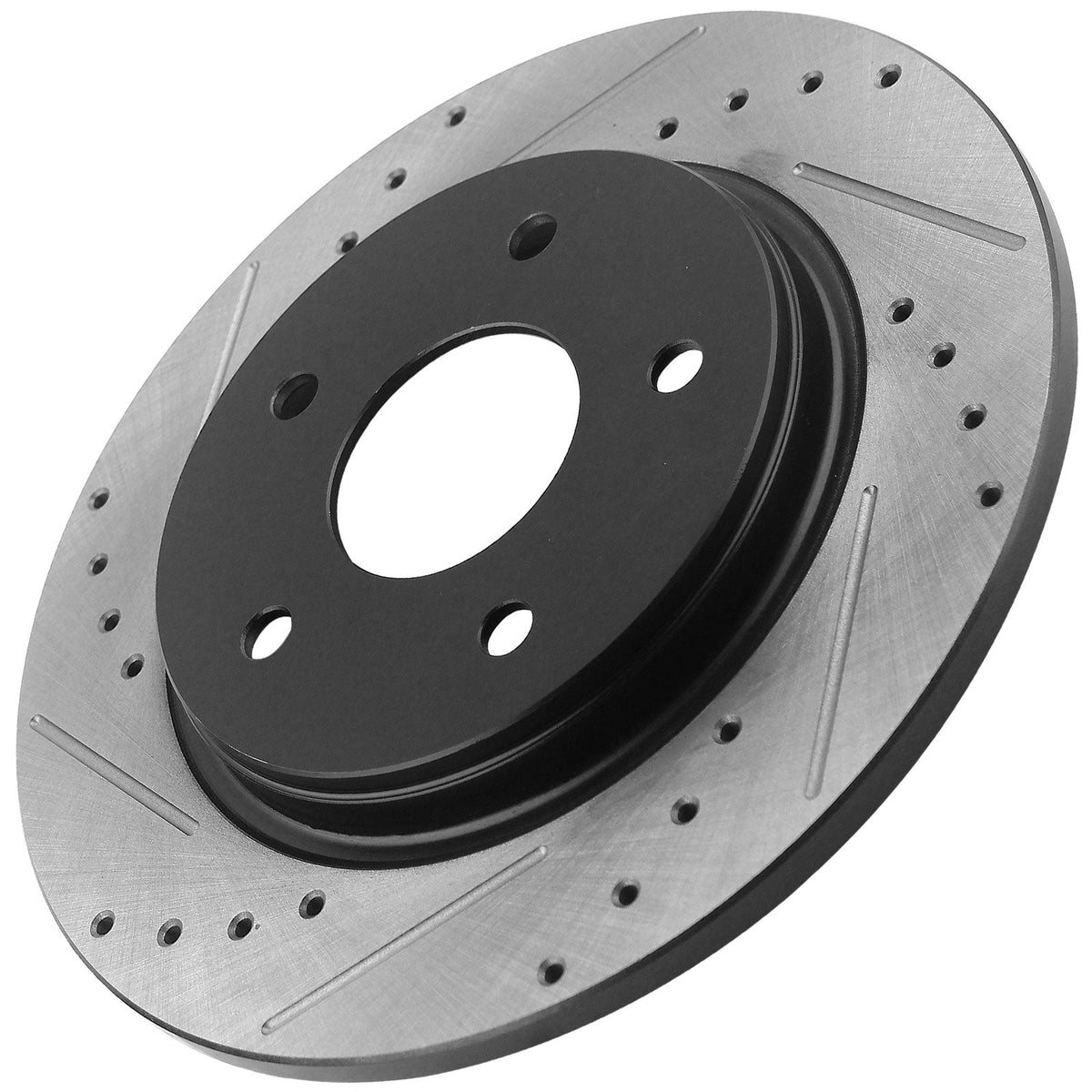

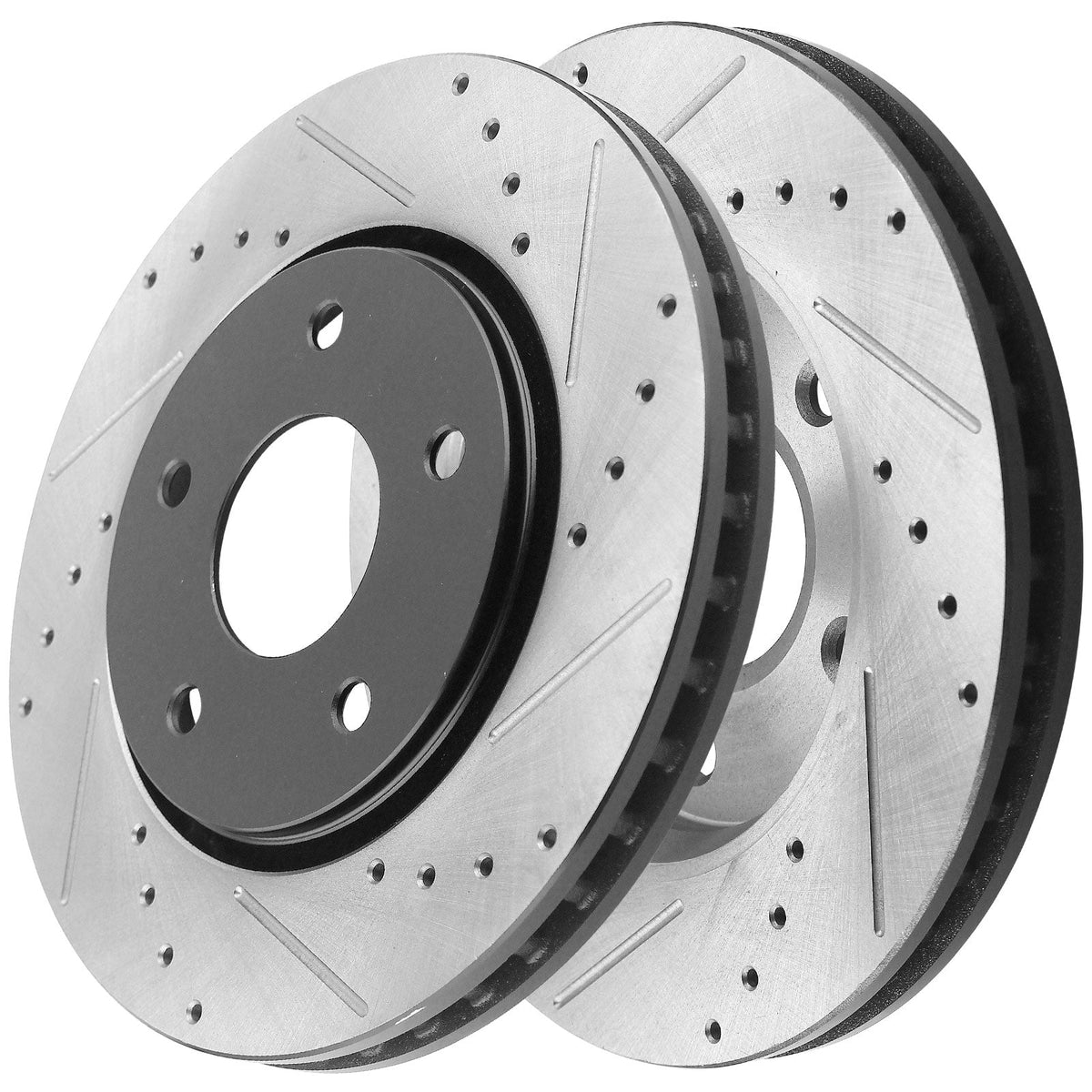

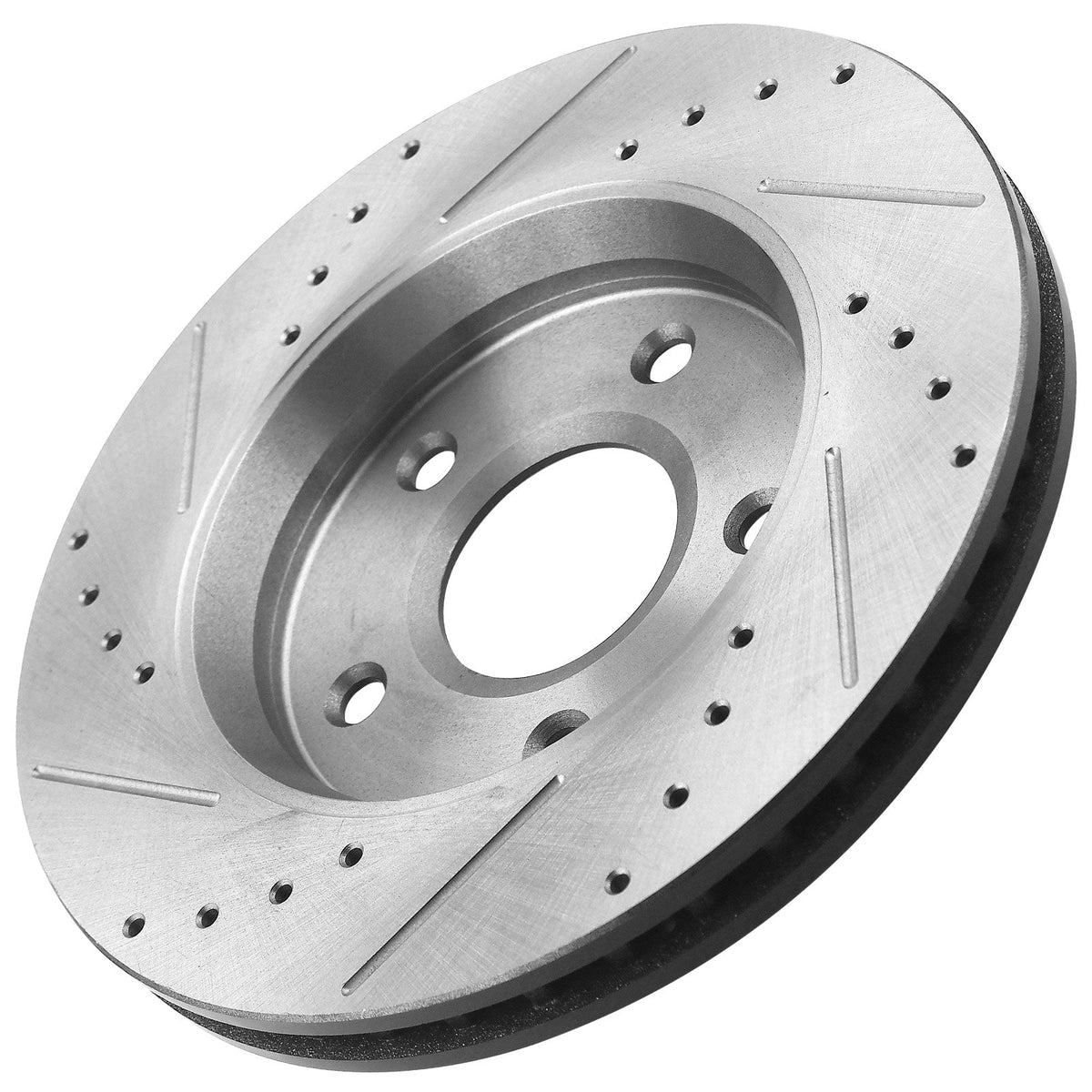

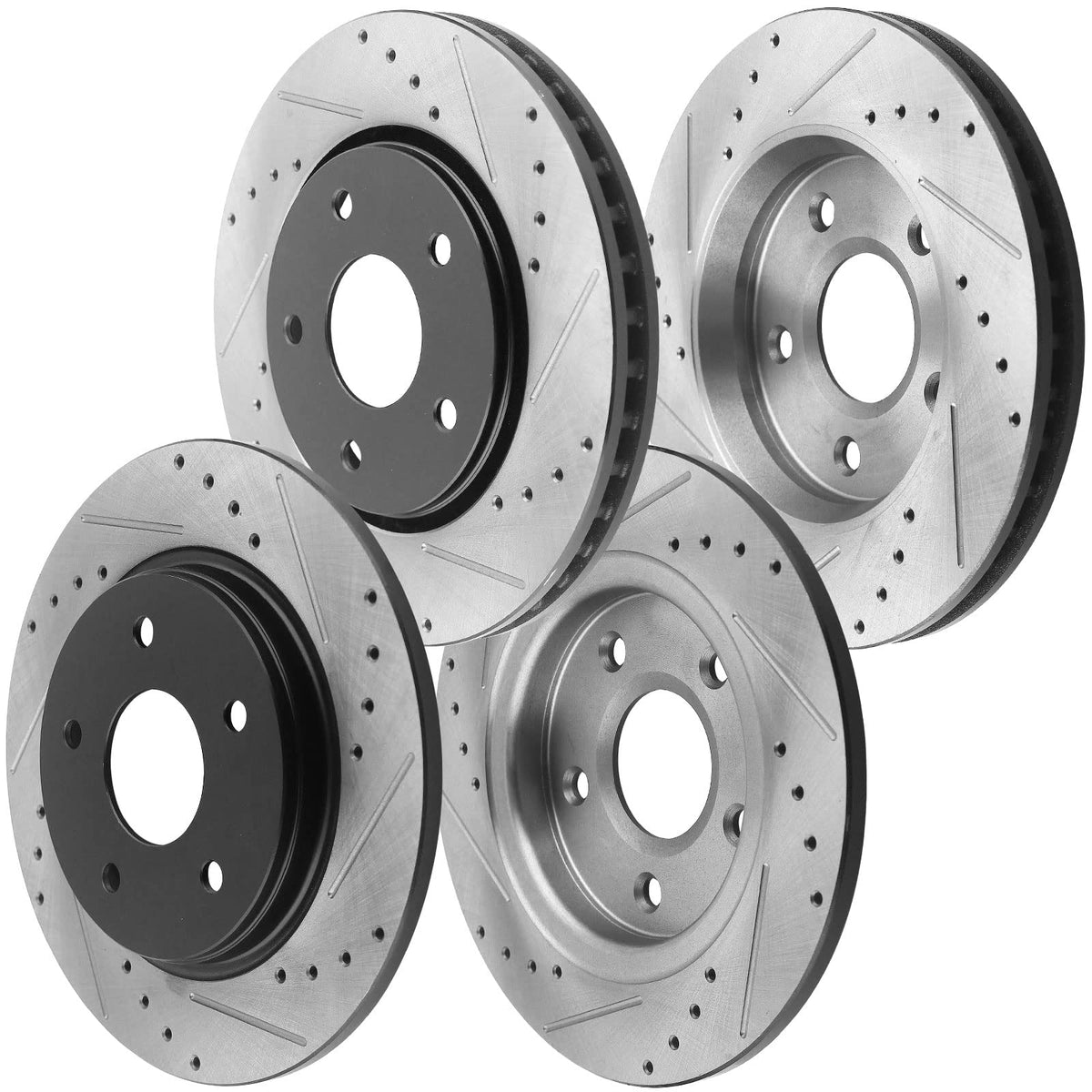

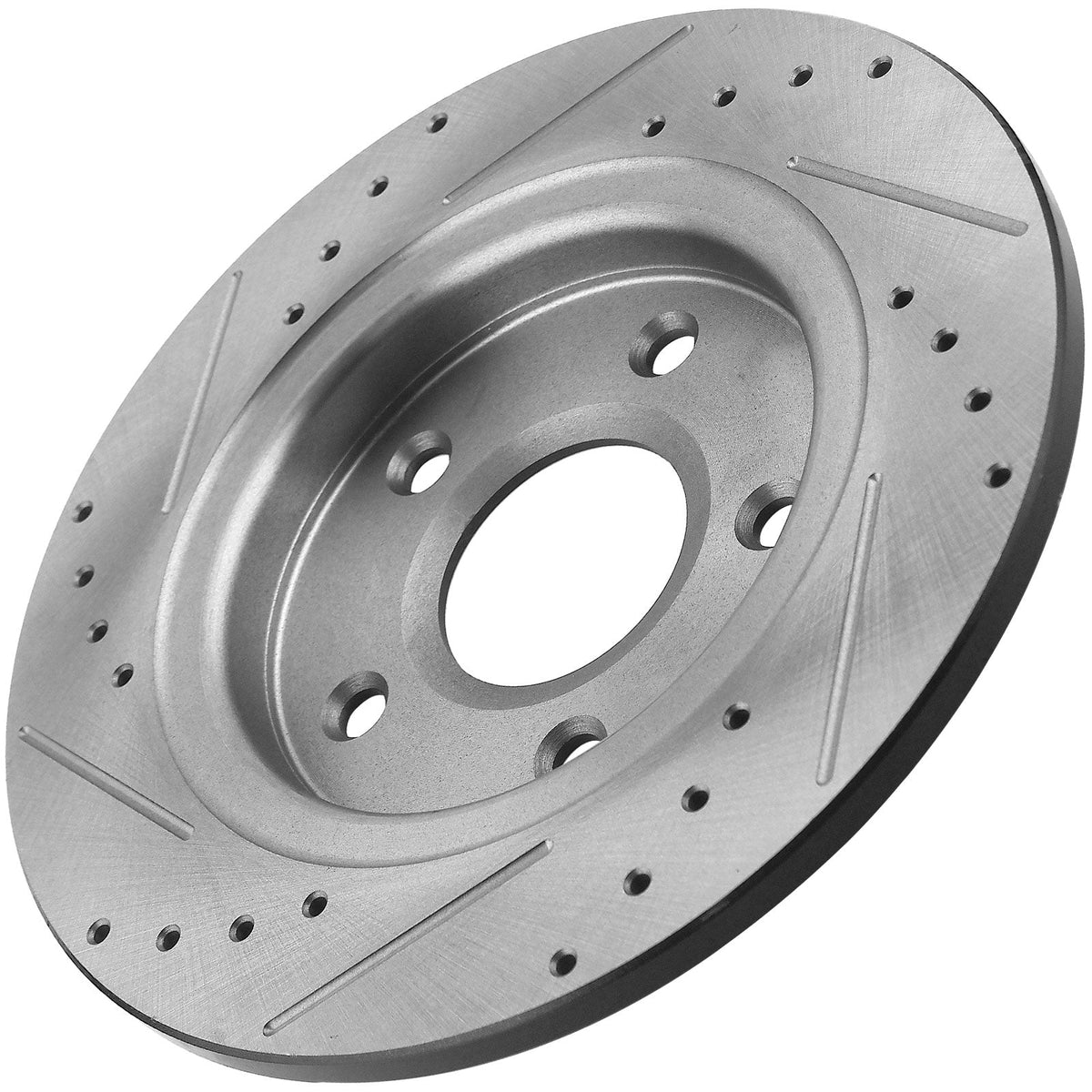

Front and Rear Drilled & Slotted Brake Rotor for Chrysler Town & Country, Dodge Grand Caravan Journey, Ram C/V, Volkswagen Routan

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Fit the Following Vehicles:
2008 - 2009 Chrysler Town & Country (12 Inch Rear Rotor Diameter)
2010 Chrysler Town & Country (12 Inch Rear Rotor Diameter | Except Heavy Duty Brake)
2011 Chrysler Town & Country (Limited, Touring L | 12 Inch Rear Rotor Diameter | Except Heavy Duty Brake )
2011 Chrysler Town & Country (Touring | 12 Inch Rear Rotor Diameter)
2012 - 2016 Chrysler Town & Country (11.89 Inch Front Rotor Diameter | 1 Piston Front Caliper | 12 Inch Rear Rotor Diameter | Except Heavy Duty Brake)
2008 - 2009 Dodge Grand Caravan (12 Inch Rear Rotor Diameter)
2010 - 2011 Dodge Grand Caravan (11.89 Inch Front Rotor Diameter | 12 Inch Rear Rotor Diameter)
2012 - 2015 Dodge Grand Caravan (11.89 Inch Front Rotor Diameter | 1 Piston Caliper | 12 Inch Rear Rotor Diameter | Except Heavy Duty Brake)
2016 Dodge Grand Caravan (11.89 Inch Front Rotor Diameter | 1 Piston Front Caliper | Brake Code BRE | Except Heavy Duty Brake)
2009 - 2011 Dodge Journey (11.89 Inch Front Rotor Diameter | 12 Inch Rear Rotor Diameter )
2012 - 2015 Ram C/V (11.89 Inch Front Rotor Diameter | 1 Piston Front Caliper | 12 Inch Rear Rotor Diameter | Except Heavy Duty Brake)
2009 - 2010 Volkswagen Routan (11.89 Inch Front Rotor Diameter | 12 Inch Rear Rotor Diameter)

Includes-
1x 120.67069L Front Drilled and Slotted Brake Rotor, Left-53051
1x Front 120.67069R Drilled and Slotted Brake Rotor, Right-53051
1x 120.67071L Rear Drilled and Slotted Brake Rotor, Left-53050
1x 120.67071R Rear Drilled and Slotted Brake Rotor, Right-53050

Specification:
Front Brake Rotors

Outer Diameter mm: 302.2
(S)olid or (V)ented: Vented
Height mm: 38.1
Normal Thickness mm: 28
Min. Thick mm (Discard): 26.4
Hub Holes/Wheel Reg mm: 72.5
Number of Studs: 5
Bolt Circle Diameter mm: 127
Bolt/Hole Diameter/Stud Size: 13.9mm
Vane Style: Straight
Mounting Type: Floating
Placement on Vehicle: Front, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric:120.67069, Aimco:53051


Rear Brake Rotors
Outer Diameter mm: 305
(S)olid or (V)ented: S
Height mm: 33.4
Normal Thickness mm: 11.8
Min. Thick mm (Discard): 10.4
Hub Holes/Wheel Reg mm: 72.5
Number of Studs: 5
Bolt Circle Diameter mm: 127
Bolt/Hole Diameter/Stud Size: 14mm
Mounting Type: Floating
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: Centric: 120.67071, Aimco: 53050,
