Front and Rear Disc Brake Rotors Drilled & Slotted Brake Rotor for Ford Fusion, Lincoln MKZ Zephyr, Mazda 6, Mercury Milan

MotorbyMotor Cross Drilled & Slotted Brake Rotors Uses Some of the Strictest Standards When Making Them. All of the Rotors are Machine Finished and Mill Balanced for a Smooth Finish and Vibration Resistance.

Fit the Following Vehicles:
2006 - 2011 Ford Fusion (All Trim Levels)
2007 - 2011 Lincoln MKZ (All Trim Levels)
2006 Lincoln Zephyr (All Trim Levels)
2006 - 2007 Mazda 6 (Naturally Aspirated)
2008 - 2013 Mazda 6 (All Trim Levels)
2006 - 2011 Mercury Milan (All Trim Levels)

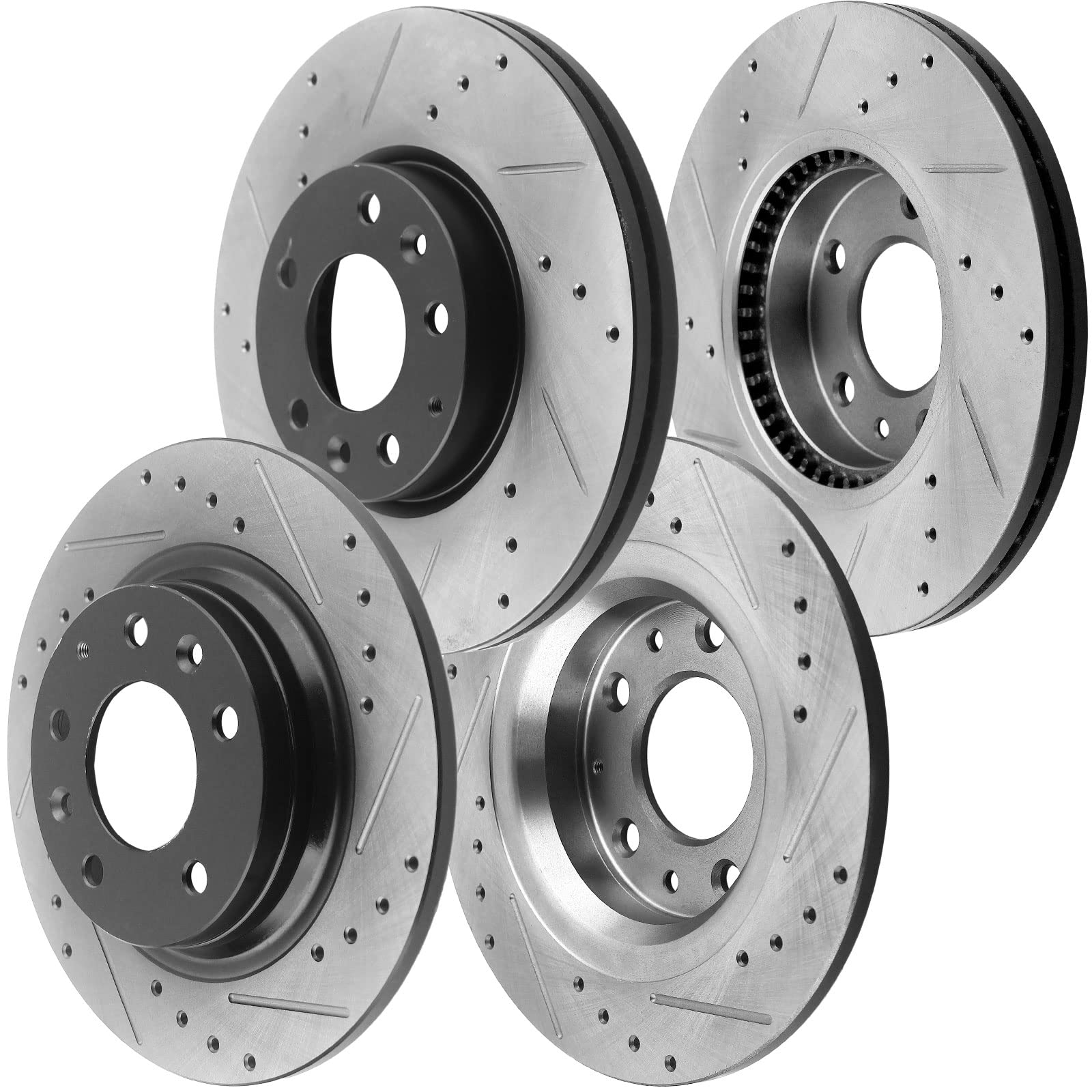

Includes
1x 120.61088L Front Drilled and Slotted Brake Rotor, Left
1x Front 120.61088R Drilled and Slotted Brake Rotor, Right
1x 120.45064L Rear Drilled and Slotted Brake Rotor, Left
1x 120.45064R Rear Drilled and Slotted Brake Rotor, Right



Specification:

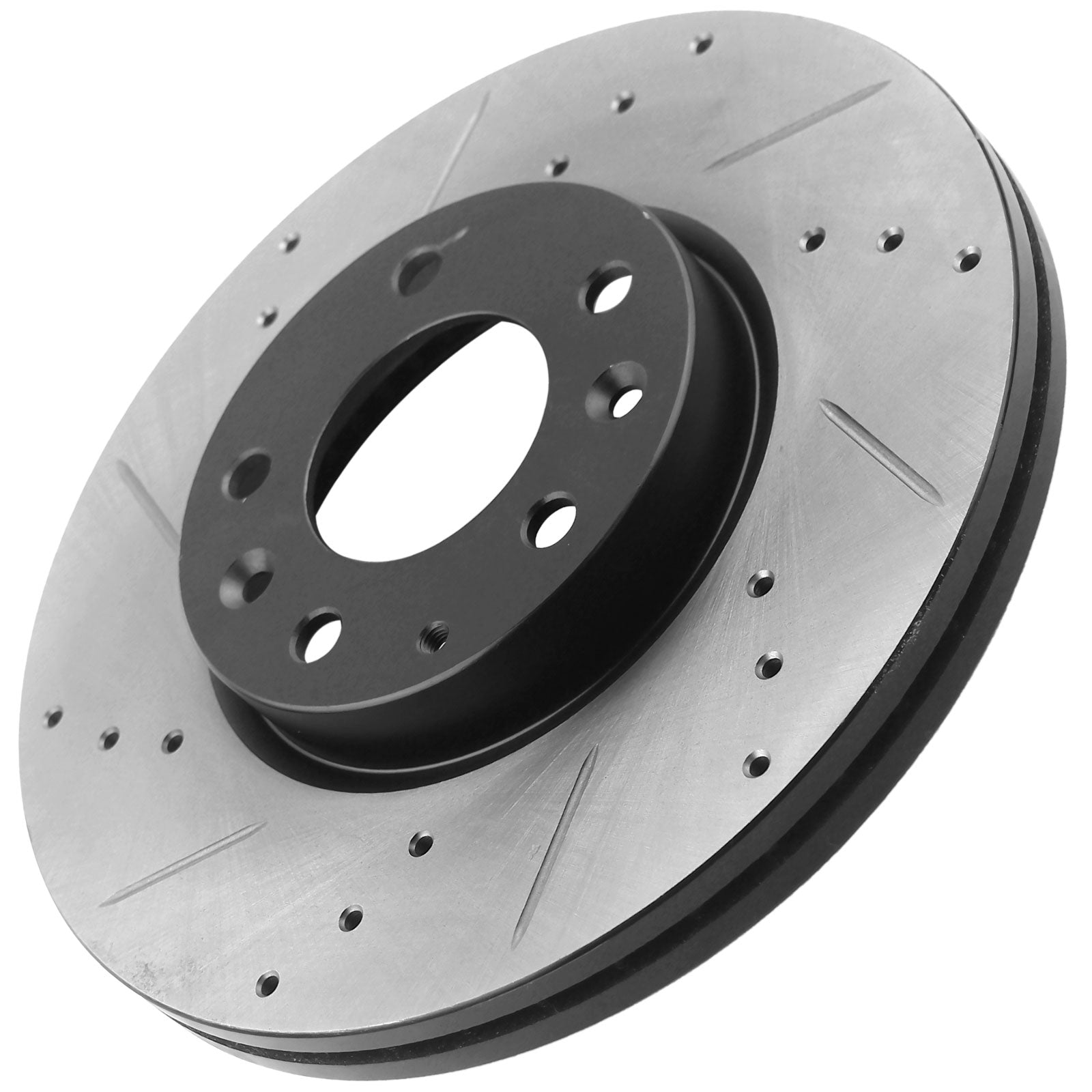

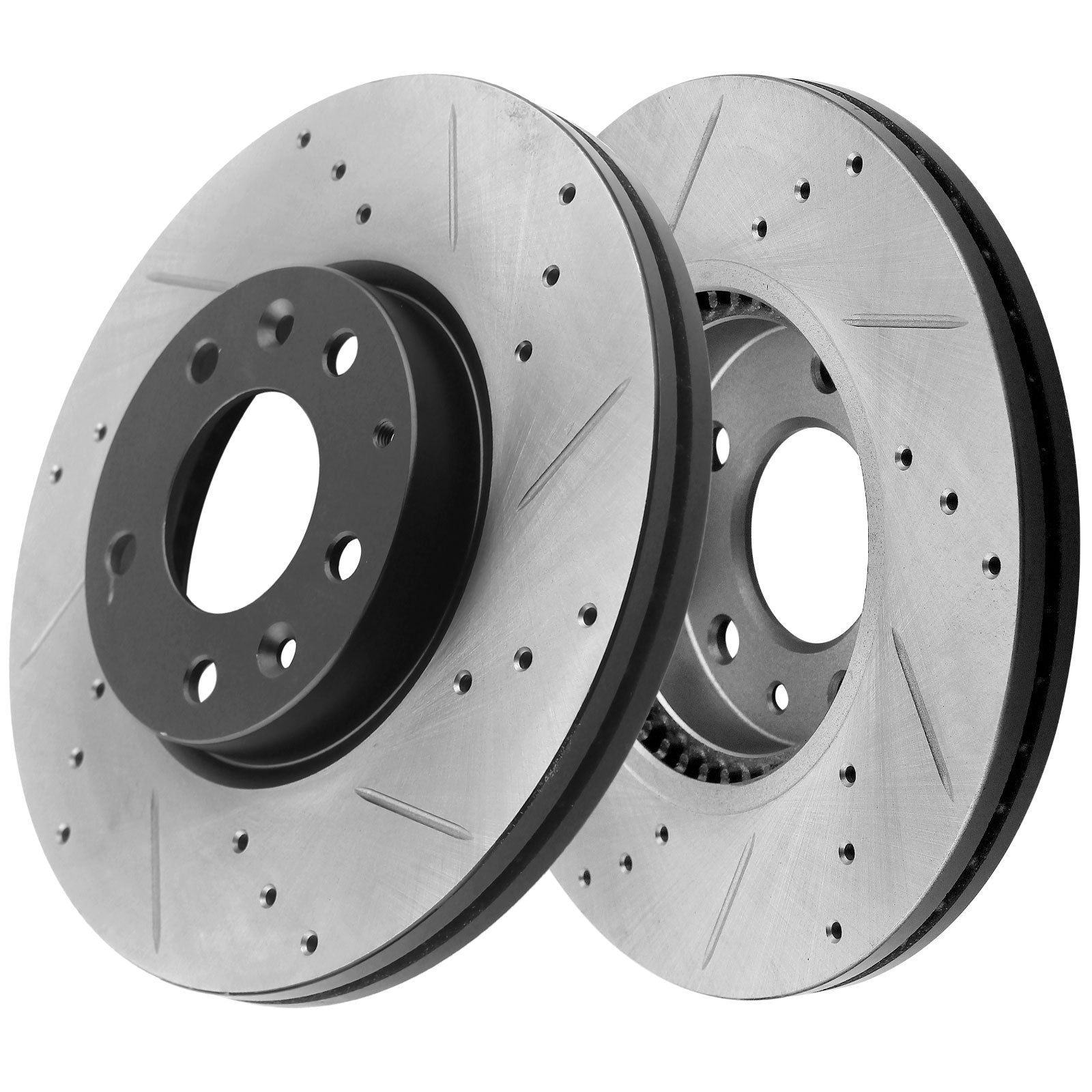

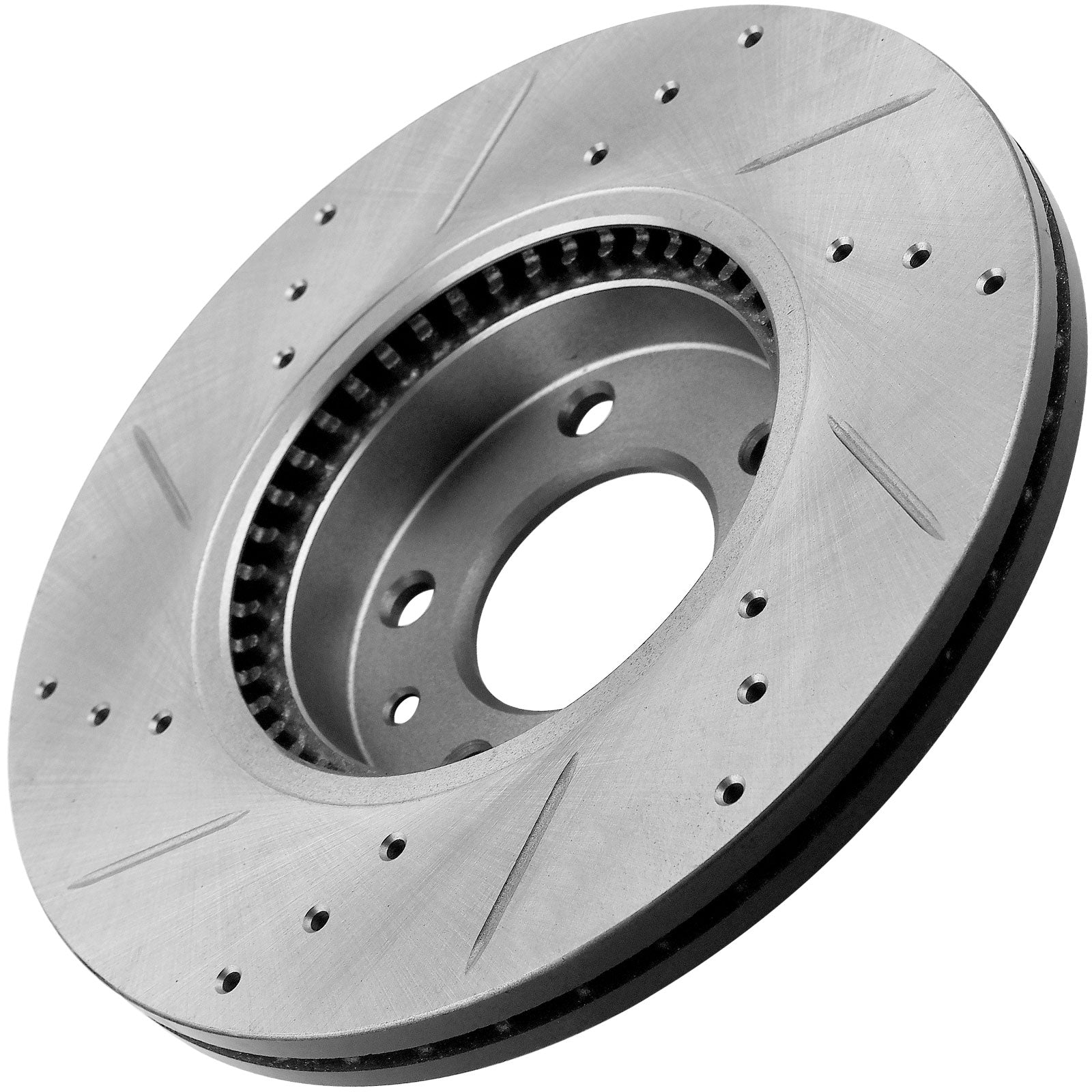

Front Brake Rotors:
Outer Diameter mm: 299
(S)olid or (V)ented: Vented
Height mm: 48.6
Normal Thickness mm: 24.9
Min. Thick mm (Discard): 23
Hub Holes/Wheel Reg mm: 72.1
Number of Studs: 5
Bolt Circle Diameter mm: 114
Bolt/Hole Diameter/Stud Size: 13.22mm
Vane Style: Straight
Mounting Type: Floating
Placement on Vehicle: Front, Left, Right
Surface Finish: Black Electrolysis Coated£»E-coating£»Silver Zinc Dichromate
Interchange Part Number: Centric: 12061088, Aimco: 54142

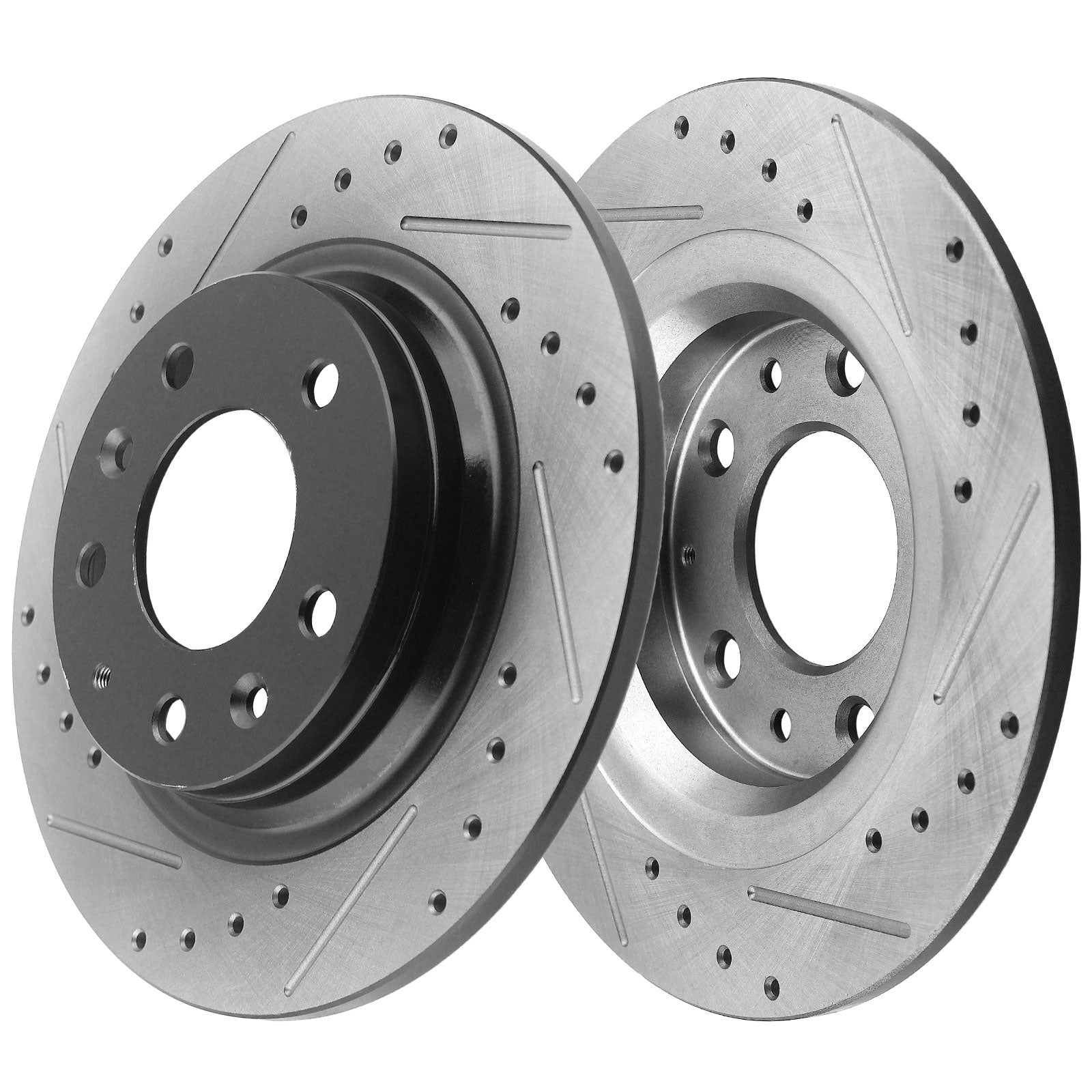

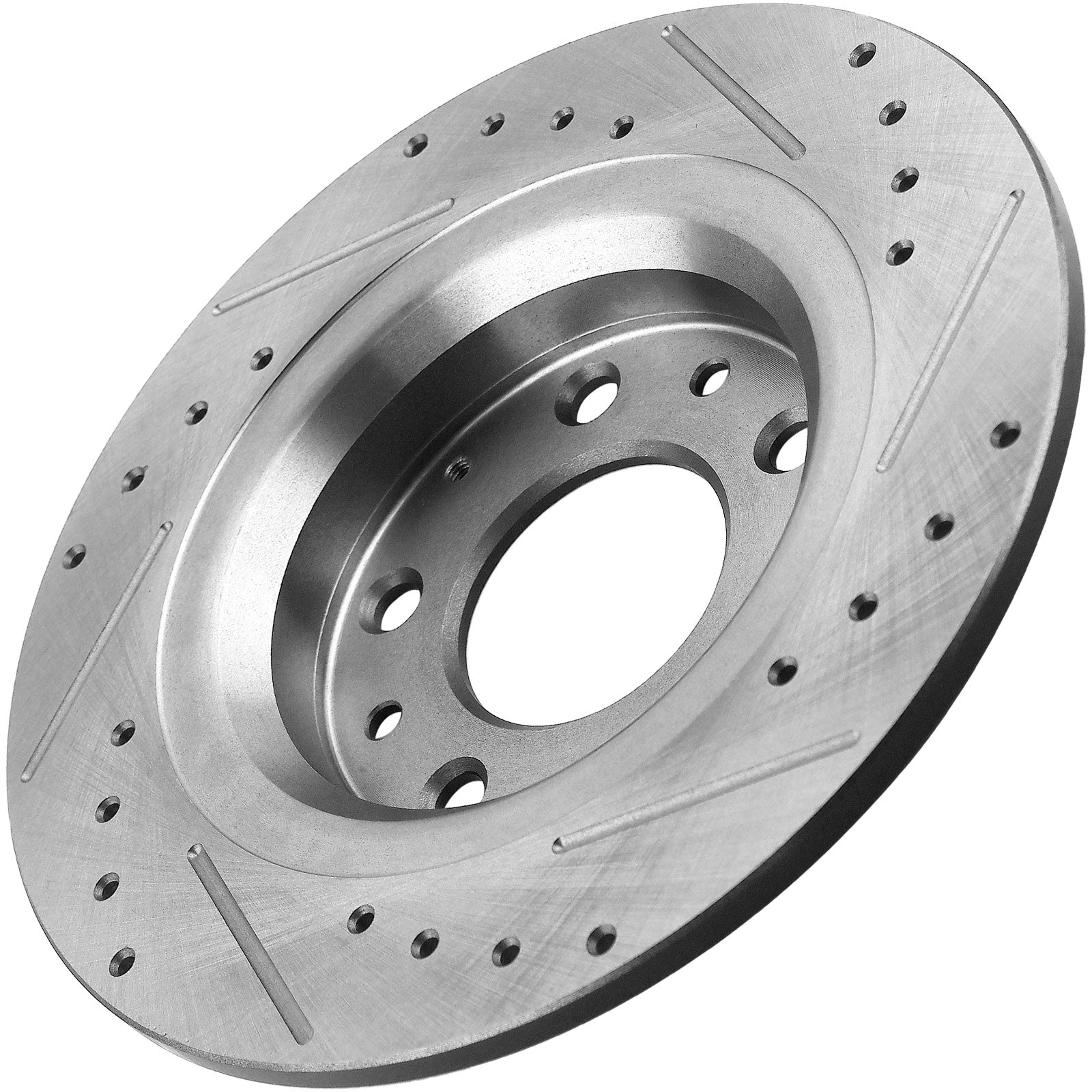

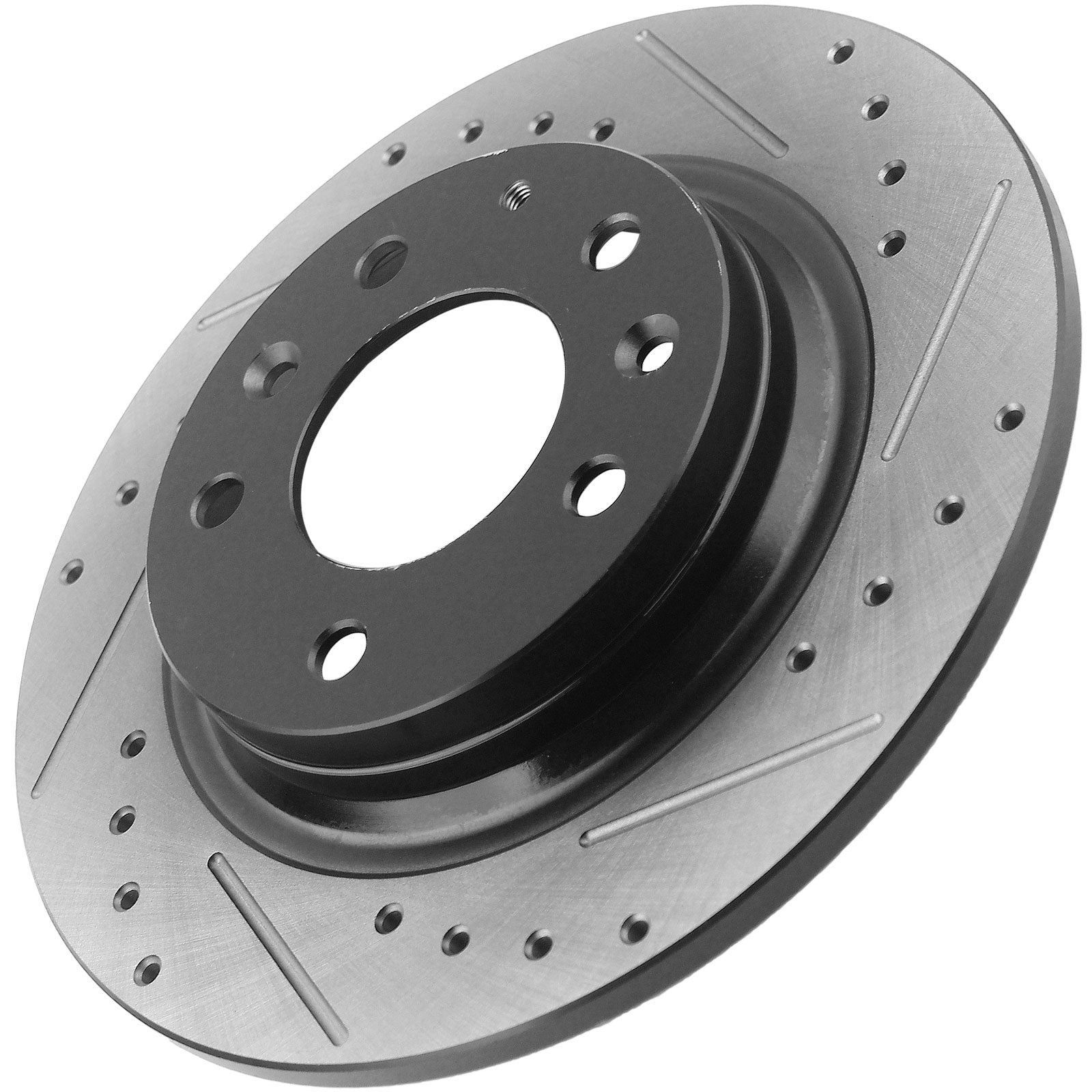

Rear Brake Rotors:
Outer Diameter mm: 279.5
(S)olid or (V)ented: Solid
Height mm: 40.2
Normal Thickness mm: 9.96
Min. Thick mm (Discard): 8
Hub Holes/Wheel Reg mm: 71.7
Number of Studs: 5
Bolt Circle Diameter mm: 114.3
Bolt/Hole Diameter/Stud Size: 12.93mm
Mounting Type: Floating
Placement on Vehicle: Rear, Left & Right
Finish: Silver Zinc Dichromate; Black Electrolysis Coated; E-coating
Interchange Part Number: 12045064, 31325
