Drive Shaft Center Bearing & Support Fits for 1984 - 2001 Jeep Cherokee XJ,1997- 2006 Jeep Wrangler TJ -Center Support Assembly

• 1xDriveshaft Center Support Carrier Bearing, Center Support Assembly.
• Replacement for 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 Jeep Cherokee XJ ;
• Replacement for 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Jeep Wrangler TJ.
• 10 Year Warranty, Support Return Refund and Replacement.

Fit the Following Vehicles:
Replaceement for 1984 - 2001 Jeep Cherokee XJ
Replacement for 1997- 2006 Jeep Wrangler TJ

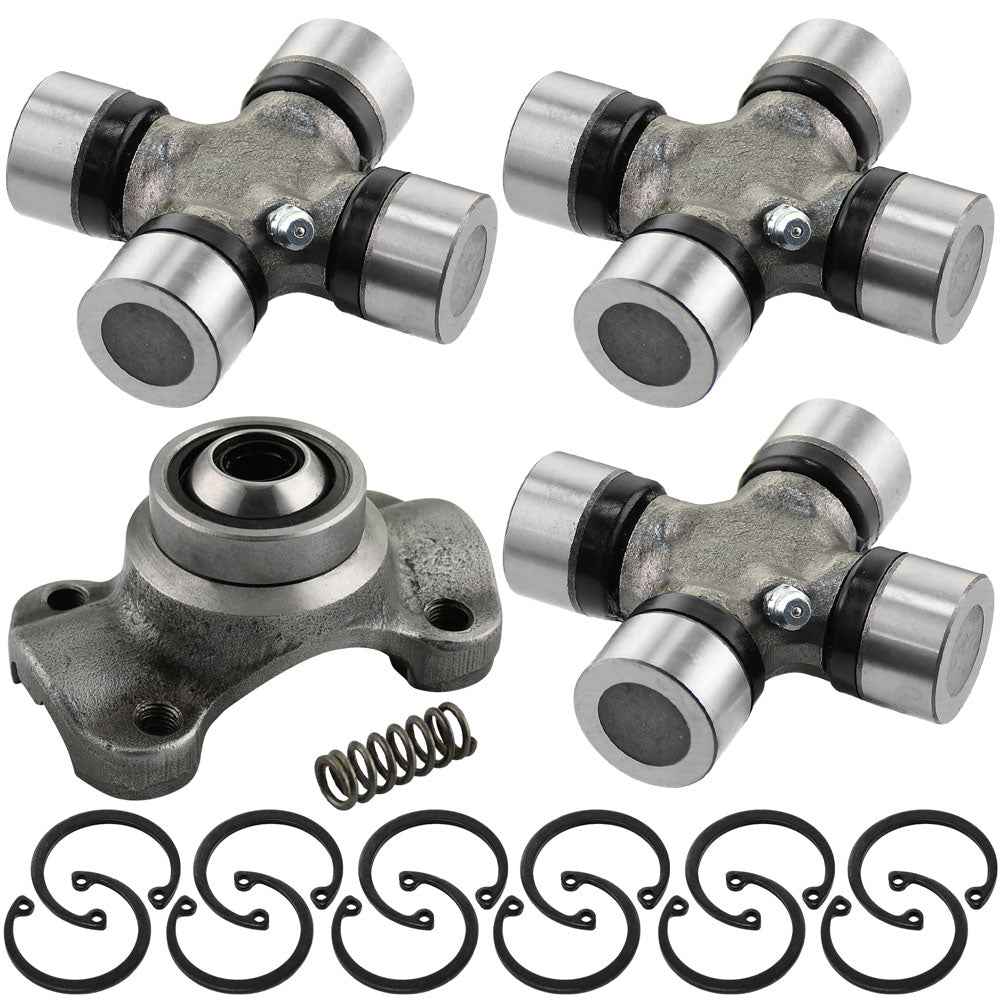

This kit contains:
3 x High-Quality Aftermarket 5-153X Greaseable Universal Joints and
1 x CV Socket Yoke 211355X with lube fittings and ball repair kit already installed

Socket Yoke Specifications

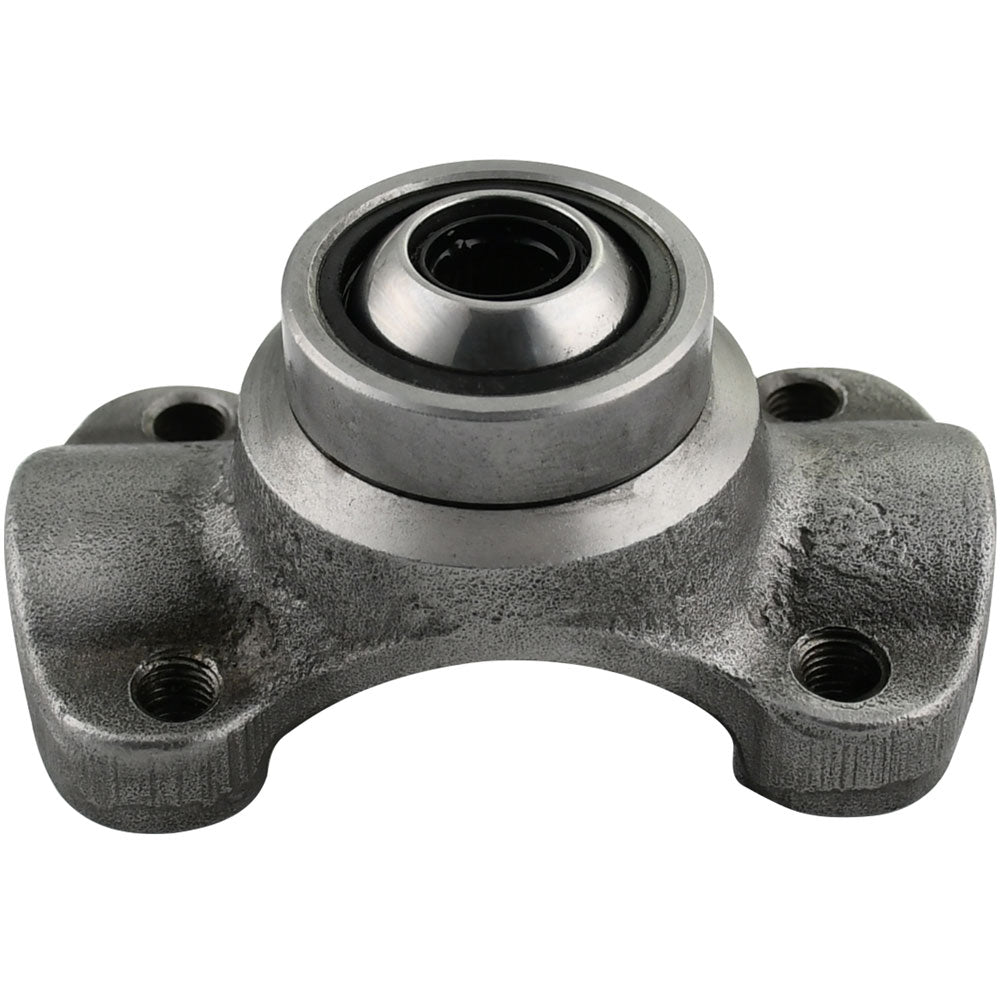

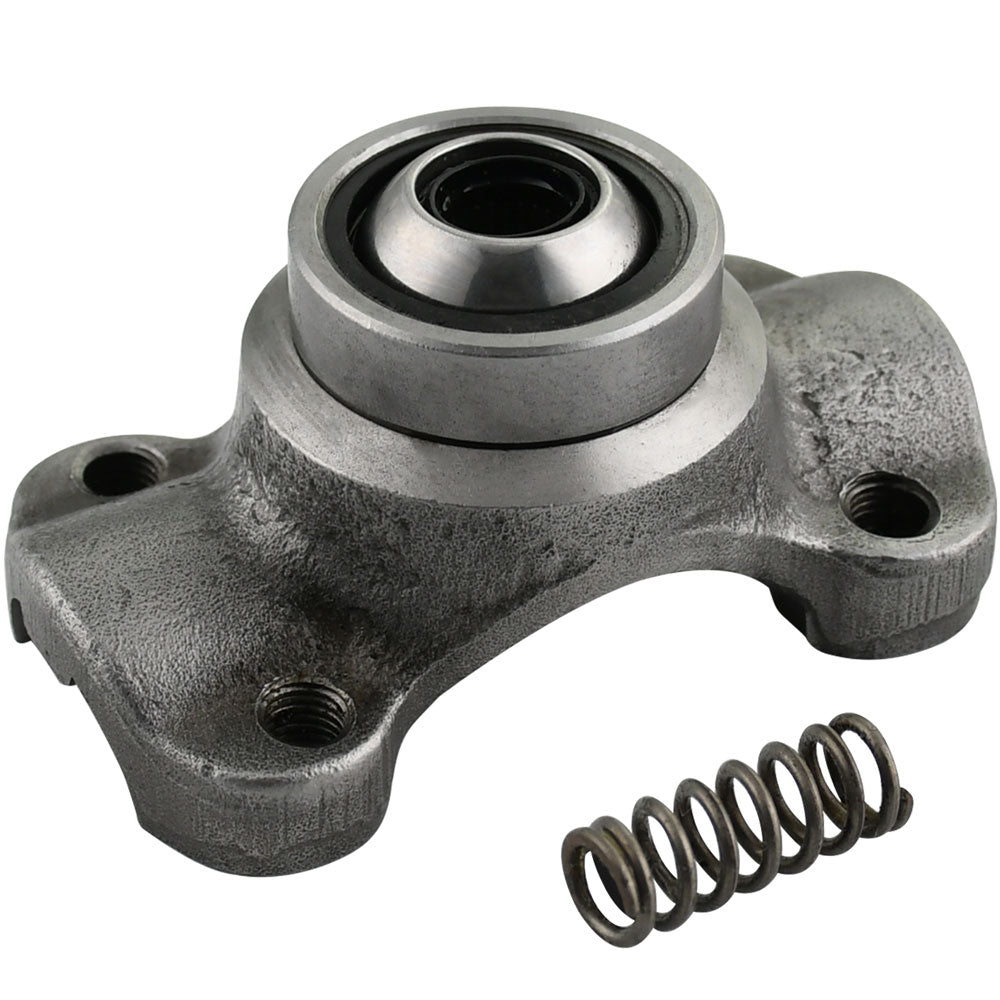

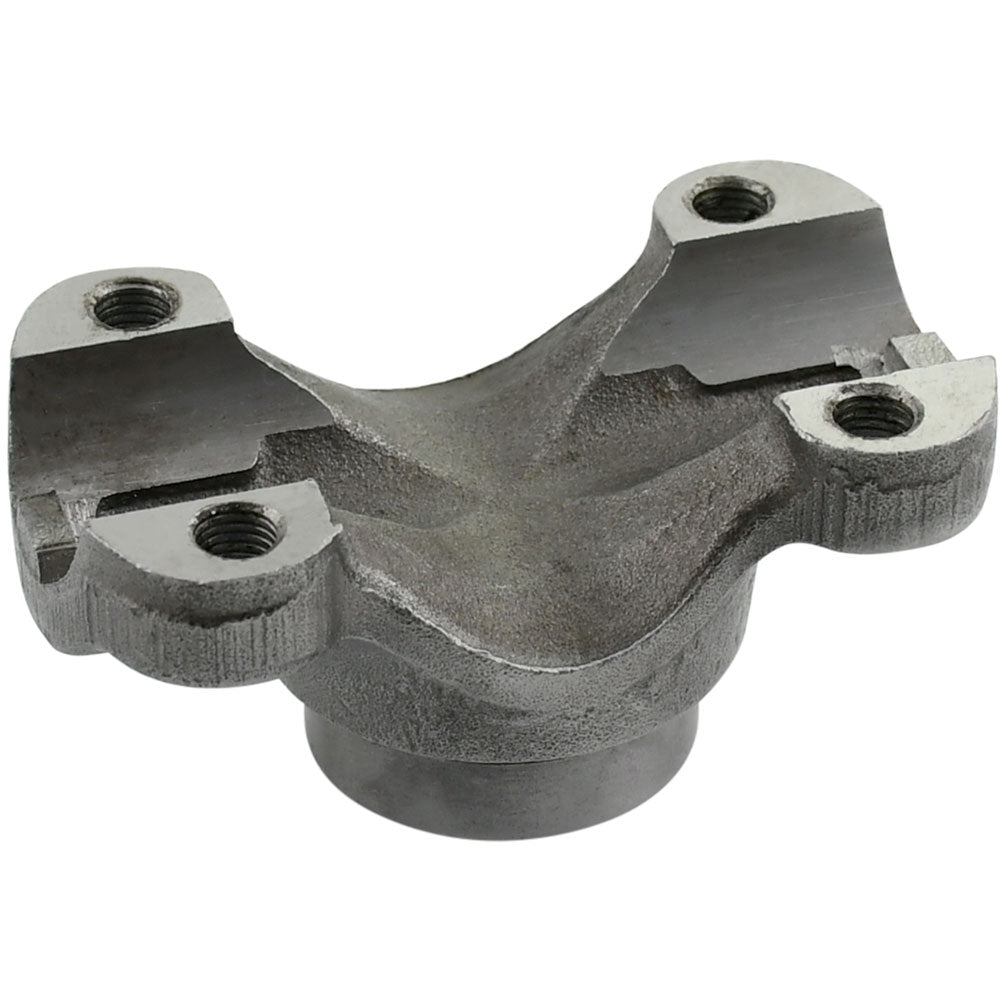

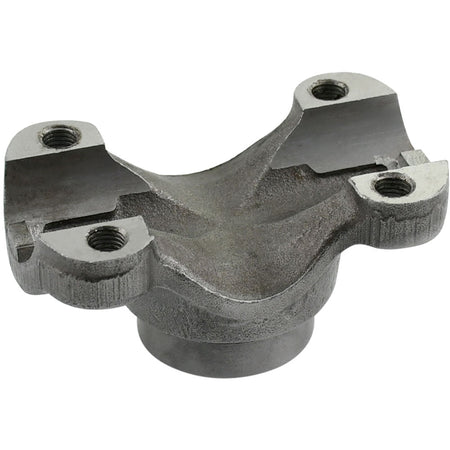

Aftermarket CV Socket Yoke 211355X
U-Joint Series-1310
Bolt Circle Diameter-2.782"
Hole Pattern Width-1.500"
Hole Pattern Height-2.343"
Bolt Hole Diameter-3/8-24
Centerline of Joint to End of the Spline-1.531"
Ball Stud Size-0.500

Universal Joint Specifications:

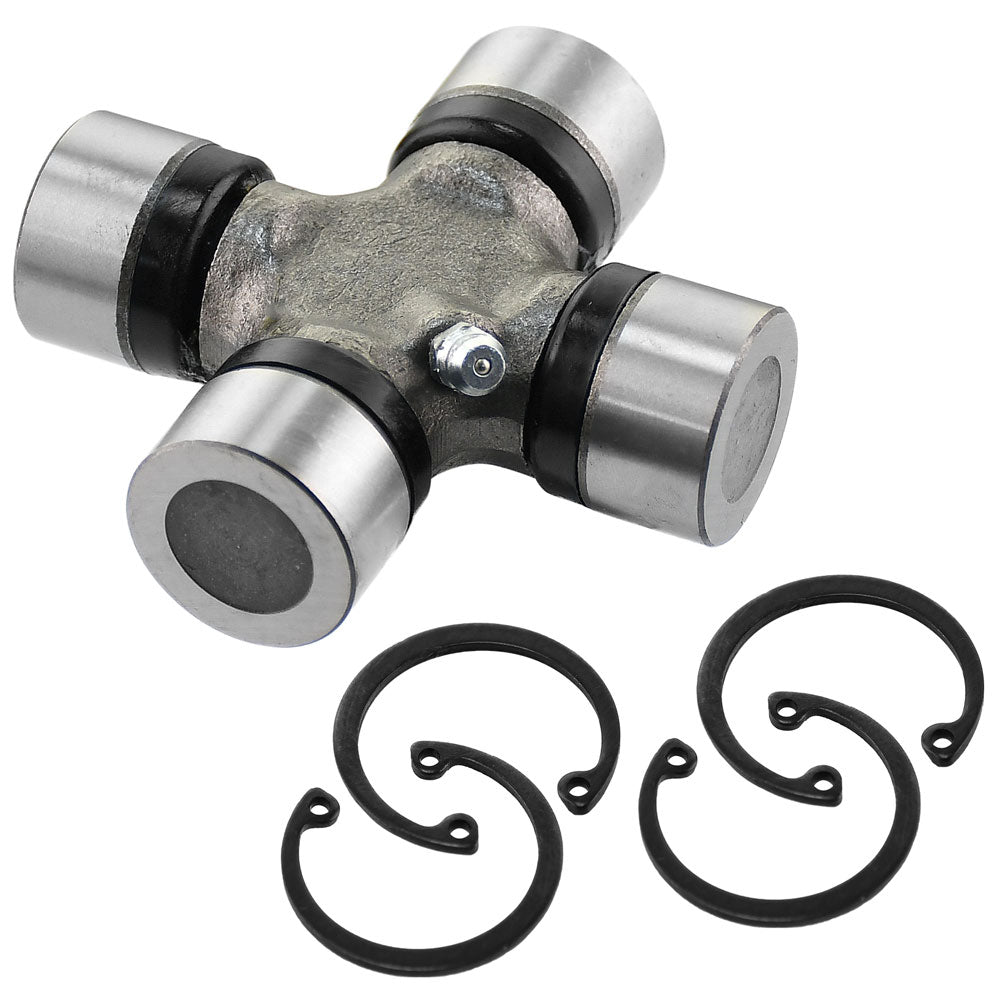

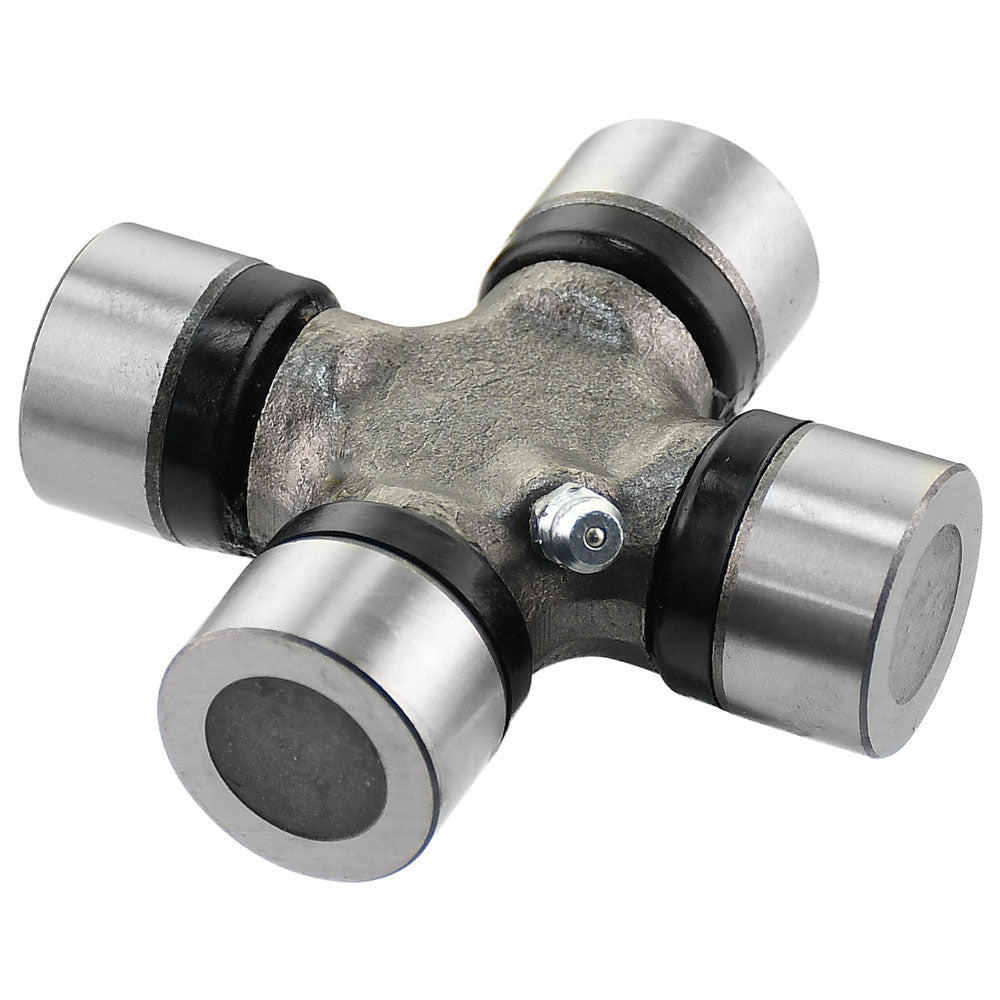

Aftermarket Universal Joint 5-153X

1310 Series

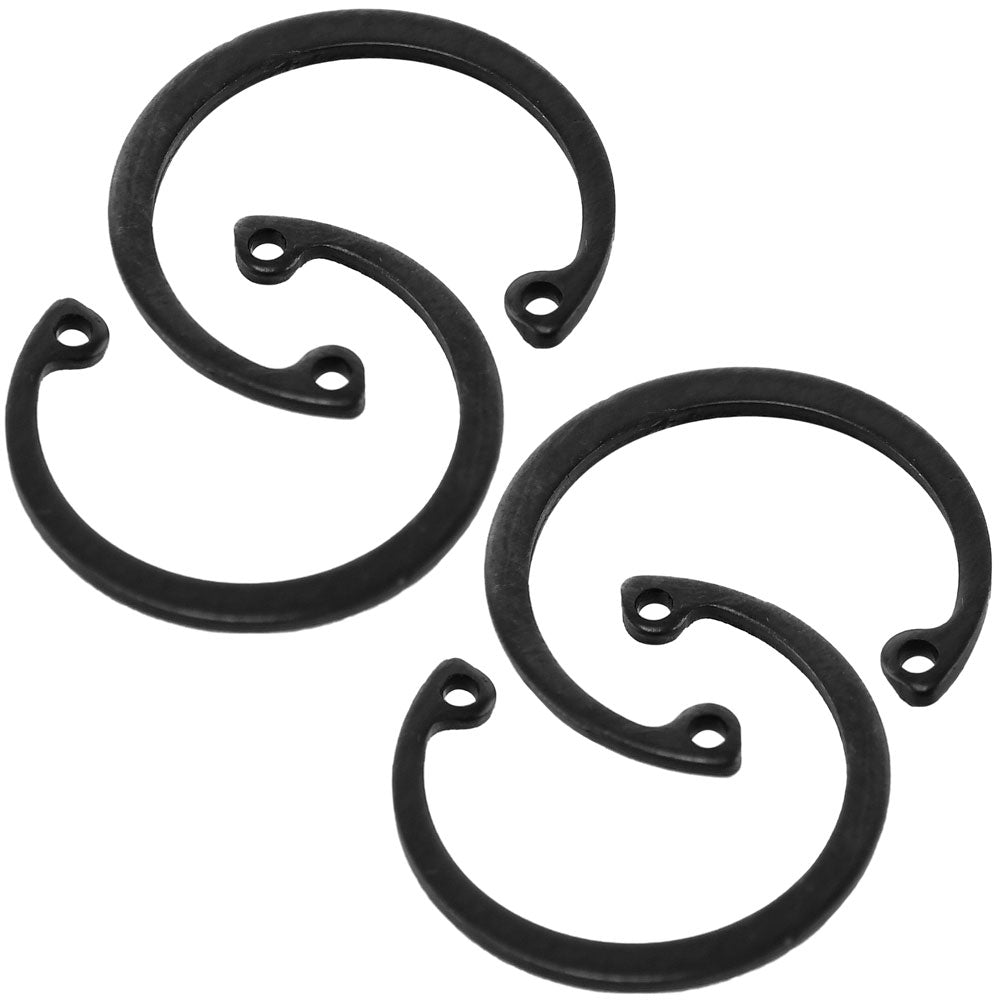

U-Joint Style: Outside Snap Ring
Cap Size: 1.062"
Cap Outside Diameter: 1.062"
Distance between Retainer Rings: 3.219"
Cap Outside Diameter: 1.062"
Distance between Retainer Rings: 3.219"
Greasable: No
